2022 Hot Sale UL1015 UL1569 Electric Hook up Electronic Instrument Cable

Get durable and high-quality UL1015 and UL1569 electronic instrument cable for hot sale in 2022. As a factory, we ensure the best prices and superior performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
UL1569
Material Shape
Round Wire
Range of Application
Internal Wiring of Appliances and Electronic Equi
Brand
Elesun
Trademark
ELESUN
Origin
China
HS Code
8544492100
Production Capacity
10000m/Day

Product Description




Product Description

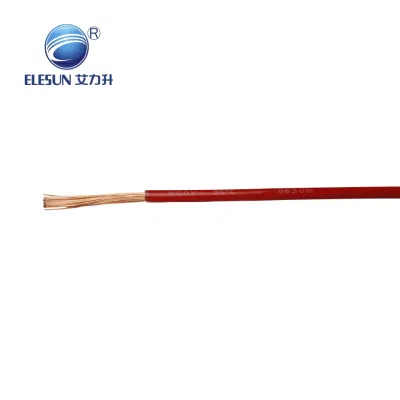

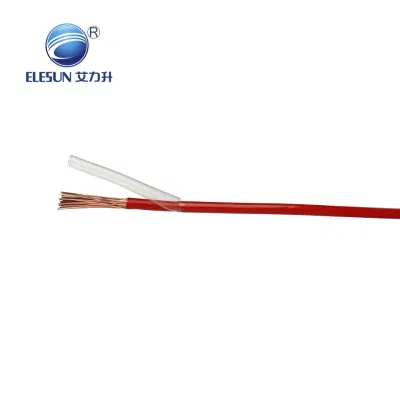

UL1569 hook up wire is made of tinned copper, the insulation is PVC,the conductor is usually 19 strands, elesun cable can produce from 22awg to 1awg to meet different application requirements.

Application :
UL style 1569 lead wire is a general-purpose electronic hook up wire, used in the internal wiring of appliances and electronic equipment, it can resistant to water, oil, acid, solvent and fungus .  The jacket is PVC ,the rated voltage is 600 voltage, it can be used where temperatures range from -40ºC to +105ºC. UL 1015 lead wire can also use as internal wiring in appliances that are exposed to oil which does not exceed 105ºC in temperature.

The difference from UL1007: both types of cable is insulated by PVC but the thickness is different, UL 1015 is thicker, and the rated voltage of UL1015 is 600V while the rated voltage of UL1007 is 300V.

The UL1015 lead wire produce by elesun cable is compliant to ROSH,ASTM

Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.


UL style 1015 AWM 1015 hook up wire  specifications
Material of Inner Conductor Tinned copper
No. of Inner Conductor Solid , 19 strands, 41 strands
Material of Jacket PVC
Diameter of jacket From 22 awg to 1awg
Rated Working Temp -40ºC to +105ºC
Voltage 600V

Conductor structure and Resistance

AWG Conductor Structure (NO.of strands) Diameter of Conductor(mm) 20ºC Max Resistance (Ω/km) Min Insulation Thickness(mm)
22 1,7,17 Ф0.64;Ф0.76;Ф0.77 54.3 0.79
20 1,7,21 Ф0.81;Ф0.93;Ф0.95 33.9 0.79
18 1,7,16 Ф1.02;Ф1.17;Ф1.21, 21.4 0.79
16 19,65 Ф1.50;Ф1.49, 13.5 0.79
14 19,105 Ф1.86;Ф2.15, 8.45 0.79
12 19,65 Ф2.43;Ф2.36, 5.31 0.79
10 19,105 Ф2.94;Ф3.41, 3.36 0.79
8 19,168 Ф3.75;Ф4.28 2.11 1.14
6 19,105 Ф4.75;Ф5.42 1.33 1.14
4 19,168 Ф6.00;Ф6.85 0.84 1.14
2 19,266 Ф7.55;Ф8.62 0.53 1.52
1 19,209 Ф8.45;Ф9.67 0.42 2.03
