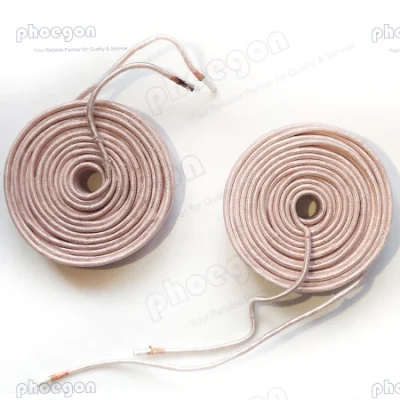

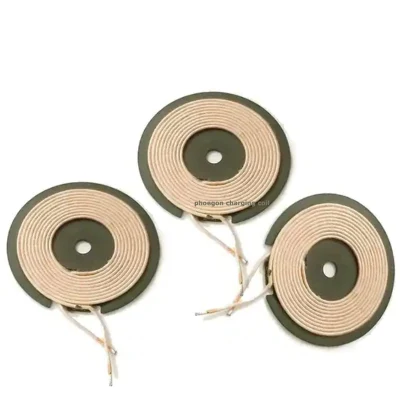

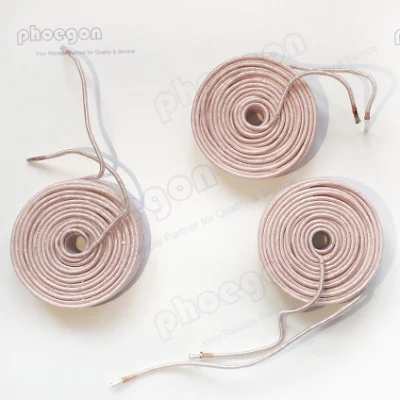

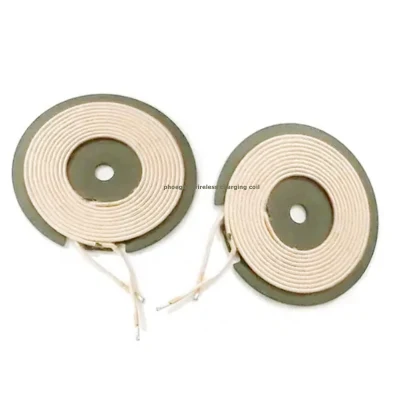

20mm Litz Wire Induction Coil Wireless Charging Coil

Get the best quality 20mm Litz Wire Induction Coil Wireless Charging Coil from our factory. Reliable and efficient products for all your charging needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
NBL3009
Range of Application
Coupling
Packaging Form
Power Coils
Brand
Phoegon
Inductor Value
Fixed Inductor
Od
50mm or Customized
Height
3mm or Customized
Inductance
6.5uh or Customized
Wire
0.08/0.1*60p/80p/100p/200p RO Customzied
Self Adhesive
Yes
Operating Temperature
-40c to 80c
Transport Package
Shrinkage Wrapping Then in Carton
Specification
customized
Trademark
PHOEGON
Origin
Qiingdao, China
HS Code
8504311000
Production Capacity
20 0000 PCS

Product Description

 Wire Air Core Inductor Coil

Type of Wire: Litz Wire
Wire Gauge: 0.08/0.1*10P to 10000P or customzied as per your specific requirement
Turns Per Layer: 1 to 200 turns
Total Layer: 3 to 100
ID: 10mm to 50mm
OD: 15mm to 1500mm
Height: 3mm to 60mm
Inductance: fixed value as per your requirements


Specification
Material  Mn,Zn,Iron Powder,Nanocrystalline.
Application  Medical Equipment, Electronic Appliances,RFID,LED,ETC,etc.
Inductance  1uH-1H
Certificate  ISO9001-2008, SGS-ROHS.
MOQ  1000pcs
Sample Lead Time  5~10 workdays
Inductor diamension  Customized
Tolerance  +/-0.05~0.1mm
20mm Litz Wire Induction Coil Wireless Charging Coil
20mm Litz Wire Induction Coil Wireless Charging Coil
20mm Litz Wire Induction Coil Wireless Charging Coil
FAQ:

Q: Are you manufacturer?
A: Yes we have about 170 staff specializing in design and production of transformer and inductor Coil

Q: What is the Lead Time for normal order Quantity?
A: it shall take us about 4 weeks. One week for materials preparation, two weeks products, one weeks testing and packing operation.

Q: Small Order Quantity is possible?
A: Yes, but the price shall be a little bit higher.

Q: what is packing of transformer, inductor, coil?
A: Foam box, Blister Tray, Carrier Tape Reel, XPS shrinkage packing and etc.

Q: all the products before shipment is tested 100% or tested by sampling?
A: 100% tested for all products.

Q: REACH or ROHS compliance?
A: All the materials are sourced from reliable supplier meeting requirements of REACH and ROHS

Q: Production Sample available?
A: before mass production, sample shall be sent to you for your evaluation if essential
20mm Litz Wire Induction Coil Wireless Charging Coil 20mm Litz Wire Induction Coil Wireless Charging Coil
20mm Litz Wire Induction Coil Wireless Charging Coil 20mm Litz Wire Induction Coil Wireless Charging Coil

20mm Litz Wire Induction Coil Wireless Charging Coil
20mm Litz Wire Induction Coil Wireless Charging Coil 20mm Litz Wire Induction Coil Wireless Charging Coil
20mm Litz Wire Induction Coil Wireless Charging Coil 20mm Litz Wire Induction Coil Wireless Charging Coil
