250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price

Get the best quality 250A Copper Connector Electrical Solar Jumper Wire at a factory price. Our products are waterproof and specifically designed for battery cables.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • About us
Overview

Basic Info.

Model NO.
Solar Cable Assembly
Shape
Round
Interface Type
Energy Storage Connector
Certification
VDE, RoHS, ISO9001, CCC, UL, cUL, IATF16949, Reach
Type 1
Wiring Harness
Type 2
Cable Assembly
Type 3
Solar Cable Assembly
Type 4
Energy Storage Cable
Type 5
Backup Storage Connection Cable
Type 6
Battery Storage Cable
Type 7
DC Power Cable
Type 8
Battery Cable
Transport Package
Carton
Specification
Customized
Origin
China
HS Code
8544601290

Product Description

Product Description

https://xsdsingder.en.made-in-china.com/product-list-1.html

Overview



Product Solar Cable Assembly DC Battery Cable Energy Storage Cable for ESS
Plug/Socket Rated Current 60A~600A
Rated Voltage 300V~2000V
Operating Temp. -40~125C
Wire Model NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
Size 1mm2~120mm2
Lug/Terminal Model SC1.5~SC120
Applicable Wire Range 1mm2~120mm2
Crrugated Pipe Optional
Features IP67 Waterproof, Flame Retardant, High Temperature Retardant
Touch Proof, Safe Handling, Durable Design, Reliable Connection
Quick Lock, Press-to-Release Design, High Pressure Resistance
Application Solar Energy Storage System(ESS)
Energy Storage Cabinet, Battery Pack, Battery Storage Tank
Energy Storage Converter, Power Energy Storage System
Verification UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM Welcomed


Plug/Socket Model

Plug Datasheet

1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current:  60A,100A,120A,150A,200A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC1000V, Resistance Value≥1000MΩ
3. Operating Environment
Operating Temp.: -40ºC~125ºC
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H


Socket Datasheet

1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current: 100A, 150A, 200A, 250A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC2500V, Resistance Value≥2000MΩ
3. Operating Environment
Operating Temp.: -40ºC~125ºC
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H





















Wire Model



Model

Size Rated Voltage Rated Temperature Insulation Conductor
UL1015 20~2/0AWG 600V 105ºC PVC Tinned or Bare, Stranded or Solid Copper
UL10269 20~2/0AWG 1000V 105ºC PVC
UL11627 20~2/0AWG 2000V 105ºC PVC
UL3271 20~2/0AWG 600V 125ºC XLPE
UL3321 20~2/0AWG 600V 150ºC XLPE
NSGAFÖU 1.5~120mm² 1.8/3KV -40~90ºC Rubber



Lug/Terminal Model



Model

Wire Range A.W.G.(mm2)

Stud Size (mm) Material
Min. Max. Cu
SC1.5 12AWG (1.5mm2) 4.3 6.4
SC2.5 14AWG (2.5mm2) 4.3 8.4
SC4 12AWG (4mm2) 4.3 8.4
SC6 10AWG (6mm2) 4.3 8.4
SC10 8AWG (10mm2) 4.3 13
SC16 6AWG (16mm2) 4.3 10.5
SC25 4AWG (25mm2) 4.2 10.5
SC35 2AWG (35mm2) 6.4 10.5
SC50 1/0AWG (50mm2) 5.3 13
SC70 2/0AWG (70mm2) 5.3 13
SC95 3/0AWG (95mm2) 6.4 15
SC120 4/0AWG (120mm2) 6.4 17



Certification

250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price

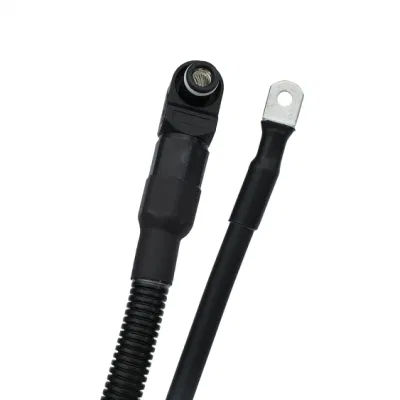

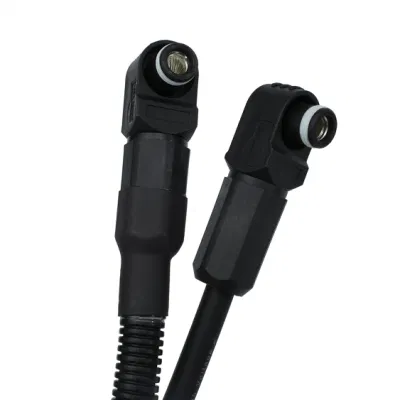

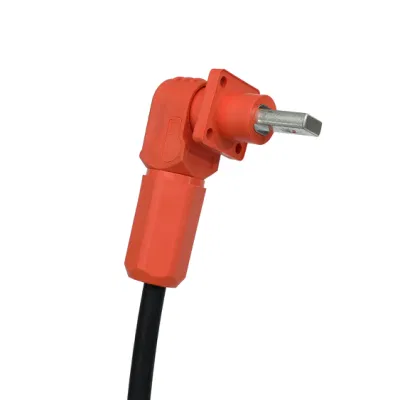

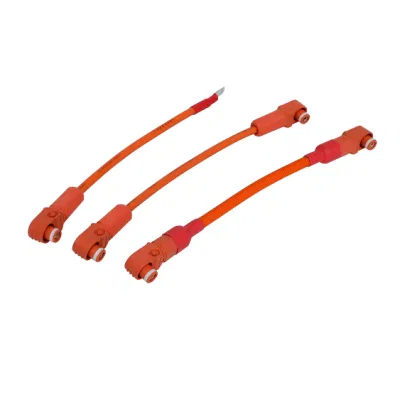

Detailed Photos



250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
About us

https://xsdsingder.en.made-in-china.com/company-Dongguan-XSD-Cable-Technology-Co-Ltd-.html

  Since our establishment in 2013, XSD Cable has been one of the professional manufacturer in the field of wire and cable. We are an one-stop solution provider for wires, cables, cable assembly. We are now serving a wide range of market segments includes: new energy, industrial applications, home appliance and equipment, automobile application, robotics application, etc. XSD Cable has been certified by UL, CSA and CCC, and Quality System is in accordance with ISO 9001 and IATF 16949. Offering superior service to achieve your project is our goal.

★Main Products: UL AWM Cable, Wiring Harness, Cable Harness, Solar Cable, Solar Wire Harness, MC4 Jumper Wire, Energy Storage Cable, Cable Assembly, Automotive Wire, Industrial Wire, Hook-up Wire, PV Wire, Robotic Cable, High Temperature Cable, LSZH Cable, Halogen-free Cable, Flat Ribbon Cable, USB Cable, HDMI, DVI, VGA and so on.

★Insulation Materials: PVC/PE/PP/XLPE/LSZH/PTFE/PFA/FEP/SILICONE RUBBER/TPU/TPE/Rubber and so on.

★Our Advantage:

1 week to finish your sample.
2 hours to quote with competitive price in fastest.
3 advantage are Excellent Quality, Superior Service, Best Price.

6,800 m
2 factory area to prepare your order.
7 days to complete your order in fastest.
10 years' experience in manufacturing wire and cable.
80 sets of main production equipment and will be more in the future.



250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price
250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price 250A Copper Connector Electrical Electric Solar Jumper Wire Waterproof Battery Cable with Factory Price We are keen to talk more and support you more whether it is a deal or not. Please contact us without hesitation if you have any demands.
