Basic Info.
Model NO.
AEX
Conductor Material
Copper
Sheath Material
No
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Wiring
Certification
ISO9001, RoHS, Reach
Brand
Bort

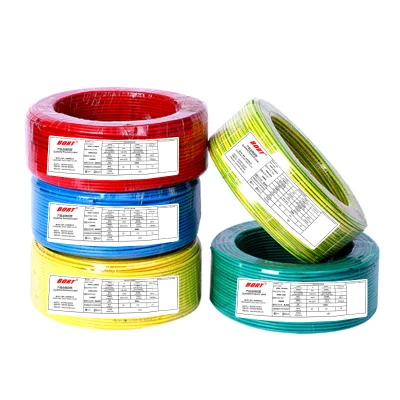

Transport Package
Roll, Customization
Specification
AWG12-30
Trademark
Bort
Origin
China
HS Code
8544492900
Production Capacity
500000km/Per Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description
PRODUCT DESCRIPTION:
★Rated temperature:70ºC
★According to JASO D 611-94

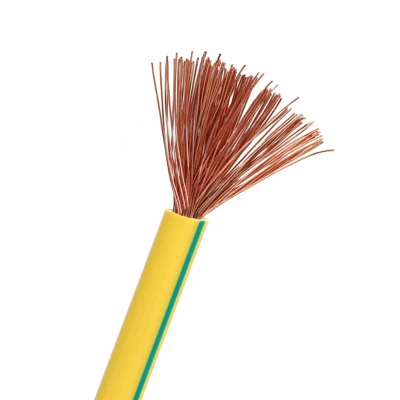

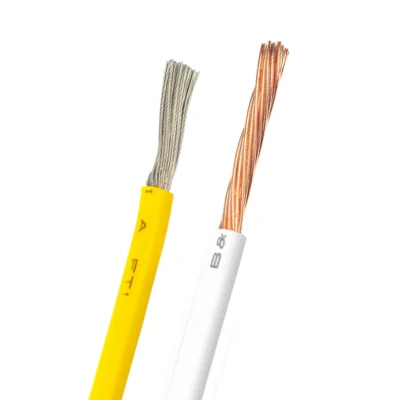

★Stranded,tinned or bare copper conductor
★PVC insulation
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil and abrasion
★Interal wiring in autmobile where high flexibility
thermo and mechanical strength are required
| Conductor | Conductor | Maximum Resistance at 20ºC | |||
| Cross Sectional Area | NO.of Cond | Cross Sectional Area | NO.of Cond | Weight | |
| mm2 | No./mm | mm3 | No./mm | kg/km | Ω/mm |
| 0.3 | 7/0.26 | 1.3 | 7/0.27 | 6.59 | 50.20 |
| 0.5 | 7/0.32 | 1.5 | 7/0.33 | 8.93 | 32.70 |
| 0.85 | 16/0.26 | 0.5 | 2.2 | 12.08 | 22.00 |
| 0.85 | 11/0.32 | 0.5 | 2.2 | 12.35 | 20.80 |
| 1.25 | 16/0.32 | 0.5 | 2.5 | 17.04 | 14.30 |
| 2 | 26/0.32 | 0.5 | 2.9 | 25.66 | 8.81 |
| 3 | 41/0.32 | 0.6 | 3.6 | 40.12 | 5.59 |
| 5 | 65/0.32 | 0.7 | 4.4 | 62.22 | 3.52 |
| 0.3F | 15/0.18 | 0.5 | 1.8 | 6.67 | 48.90 |
| 0.5F | 20/0.18 | 0.5 | 2.0 | 8.52 | 36.70 |
| 0.75F | 30/0.18 | 0.5 | 2.2 | 11.43 | 24.40 |
| 1.25F | 50/0.18 | 0.5 | 2.5 | 16.93 | 14.70 |
| 2F | 37/0.26 | 0.5 | 2.9 | 24.7 | 9.50 |
| Note: The "F" in the table indicates that the conductor is a soft structure | |||||
