Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Looking for an Automatic Cable Sheath Production Line or Electrical Cable Wire Insulation Making Extrusion Machine? Our factory has the solution you need. Contact us today.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Alpha-extruder
Demoulding
Automatic
Automatic Grade
Automatic
Installation
Vertical
Mould Life
>1,000,000 Shots
Product Name
Electric Cooper Wire Cable Extrusion Machine
Running Speed
>40m/Min
Feeding Type
Chain Drive Feeding
Dimension
4000*500*1000mm
Max Traction
2500kg
The Screw Diameter
150mm
Standard
Customized
Application
Cable, Wire
Delivery Time
3 Months
Terms of Payment
30% T/T, 70% L/C Payment
Transport Package
Sea Package
Specification
SGS
Trademark
HLT
Origin
China Jiangsu
Production Capacity
400kg/Day

Product Description

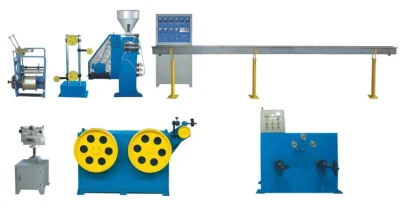

Electric cooper wire cable extrusion machine / extruder / cable making machine

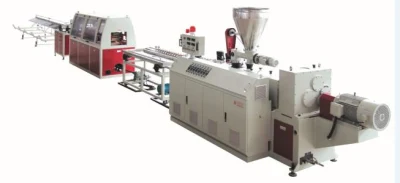

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine


Introduction

The unit is used for copper core insulation coating of middle and small section production,
mainly for the soft polyviny chloride(PVC), polyethylene and other thermoplastics


Main Equipments

Take up machine

Model XLM2500/4500 XLM3200/5000
Cable OD(mm) φ30~φ80 φ40~φ200
Reel Diameter(mm) φ2500~4500 φ3200~5000
Reel Width(mm) 1900~2500 2300~2800
Max Speed(m/min) 40 30
Load capacity (ton) 60 80

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Traction

TQD-4000KG Pneumatic Cable puller 1set
l  Max. traction force 4000kg
l  Max. diameter of cable 200mm (max)
l  Traction speed 20m/min
l  Gripping length of cable puller belt 2900mm
l  Width of cable puller belt 180mm
l  Driving motor Z4-132-4/1- 18.5Kw, 1500rpm
l  Number of pairs of cylinder 9 pairs
l  Center height of machine  1000mm
l  Direction of the machine  R - L
l  The bearings of main parts Chinese high quality brand: NSK

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

150 Extrusion machine

The screw diameter 150mm
The screw length to diameter ratio 25:01:00
After sheath outside diameter φ35~140mm
Maximum traction 2500kg
The production line speed >40m/min
Steel specification PN1600-PN3150
The line plate specification PN1600-PN3150
Equipment center high 1000mm
Production line direction In the face of the nose left put right

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine


Finished product

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine


Our Workshop


Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine


Our Clients

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

Package

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine



Our Team

Automatic Cable Sheath Production Line/Electrical Cable Wire Insulation Making Extrusion Machine

RFQ


1,Q: What is your main brand for the electrical and mechanical parts?

A: China famous brand

2, Q:could we appoint the parts brand?

A: Yes, ABB, SIEMENS, Sc-hneider or theirs that you like.

3, Q: could you please arrange the installation and commissioning ?

A: Yes , we could and the buyer pay the charge

4, Q: could you arrange the production education?

A: Yes , we could and the buyer pay the charge

5, Q: could you do the design for the whole plant

A: Yes , we can.

6, Q: could you offer the production process design

A: Yes , we can.

7, Q: what is the difference with other supplier?

A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

8.Q:What's the payment terms?

A:T/T,30% deposit and 70% balance before delivery.

9, Q:How long the guarantee:

A: one year and charge for repair the whole life.


Enable us to give you a better quotation, please kindly provide the parameter below:

1.  Coil diameter (we need to know the take up and pay off machine size)?
2.  Extrusion speed?
3.  Extrusion thickness?
4. What is material of outer sheath.(PVC or PE or HDPE or MDPE or TPU?
