Automatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion Machine

Welcome to our factory! We specialize in producing high-quality Automatic Wear Waterproof Insertion Machines for wire and cable rubber seal plug loading.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Detailed Photos
Overview

Basic Info.

Model NO.
YH-SSF01/YH-SDSC02
Automatic Grade
Automatic
Installation
Vertical
Driven Type
Electric
Mould Life
300,000-1,000,000 Shots
Name
Automatic Cable Wire Crimp Terminal Machine Servo
Power Supply
AC220V/50/60Hz Single Phase
Capacity
1400 Pieces/Hour
Wire Range
AWG14 - AWG28
Cutting Length
65mm - 9999mm (Special Length Can Be Customized)
Cutting Accuracy
1mm+Cutting Length*0.2% or Less
Stripping and Twisting Length
7mm - 12mm
Crimping Capacity
2.0 Tons (3.0t Optional)
Air Pressure
4 - 6kgf (Clean and Dry Air Is Required)
Detection Device
Optical Fiber Induction, Detection of Wire Presenc
Dimensions
700W X 800L X 1500h(mm)
Weight
About 358kg
Transport Package
Wooden Case
Specification
22*25*60cm
Trademark
YH
Origin
China
HS Code
8479819000
Production Capacity
500 Per Month

Product Description

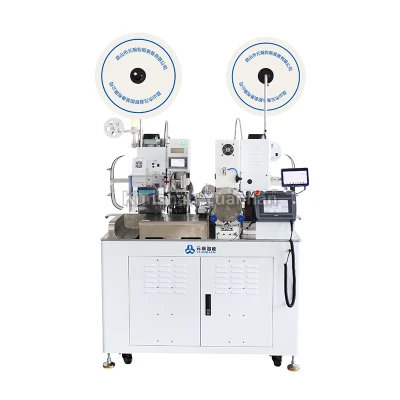

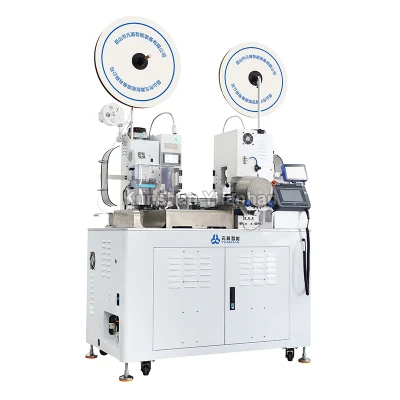

Fully Automatic Two Ends Wire Cut Strip Seal and Crimp Machine


Features

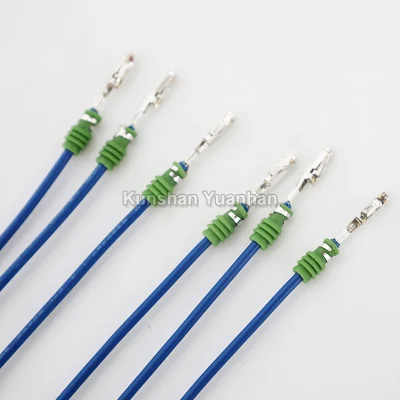

  • This is a fully automatic machine to process wire cutting, single end stripping, both ends stripping, two ends wire rubber seals loading and two ends terminal crimping.
    Model: YH-SSF01  Brand: Yuanhan



Product Parameters
Model  YH-SSF01/YH-SDSC02
Power supply  AC220V/50/60HZ(110V/60Hz optional)
Capacity 3000 pieces/hour(Length within 100mm)
Wire size AWG#28-AWG#16
Cutting length 50-9999mm
Cutting tolerance  within 1mm + cutting length x 0.2%
Stripping length  1.5-10 mm
Crimping force 2.0/3.0 Ton
Air pressure 4-6kgf (use clean dry air)
Testing device Whether lack of wire and terminal detect, wire seals detect, low pressure detect
Dimension 800Wx1000Lx1500H mm
Net weight  About 440 kg



Detailed Photos

Automatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion MachineAutomatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion Machine



Packaging & Shipping

Automatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion Machine
Automatic cable wire crimp terminal machine servo terminal crimping machine
Packaging Details Export standard package for  terminal crimping machine
Delivery details Within 3-5 working days
Our company

Automatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion Machine

Yuanhan wire harness processing machines are widely used in automotive, home appliances, communications, rail transit, nuclear power, aerospace, charging piles, photovoltaic and new energy industries. With an annual output of more than 10,000 sets of wire harness processing equipment, we deliver efficient, high-quality services and fast solutions to many customers around the world.


Our Services



Automatic Wear Waterproof Insertion Machine Wire Cable Rubber Seal Plug Loading Machine Seal Insertion Machine
1.How to order?
Please contact my Email for much more details, you can place order with us directly or through alibaba online transcation after confirmation.
2.What's your payment terms?
We accept trade assurance order, T/T,L/C, western union, Paypal etc.
3.How long does the production time?
Generally 3~7 days, if there's customized model or other request will be adjusted.
4.How do you packaged the products?
Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.
5.What can you provide for us?
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation, please feel free to contact us.
