Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm

Get high quality Awm PVC Electric Cable Core Wire in various sizes from our factory. Choose from 1.5mm to 20mm. Durable and reliable for all your electrical needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
battery cable
Material Shape
Round Wire
Range of Application
Car Power Cable
Certification
ISO9001, CE, RoHS
Brand
Hanker
Transport Package
100m/Drum
Specification
16-150mm2
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month

Product Description

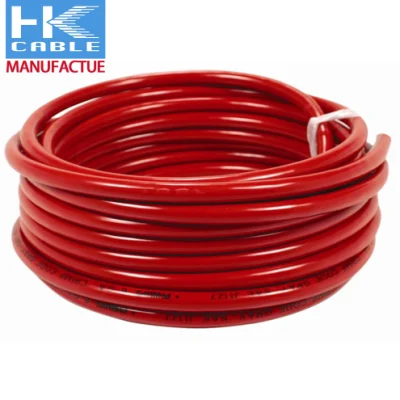

Awm pvc Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm
Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Application
Low-tension electric wire for Automobiles.
Used in Motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits.

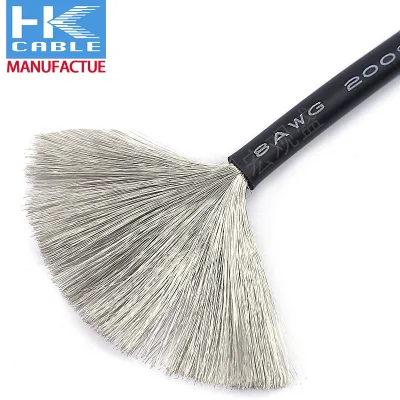

Product Construction
 Conductor : Soft-annealed electrolytic Copper E-Cu ETP1 according to D 609-90, bare conductor construction according to IS 2465
 Insulation : PVC, Lead free.
Colour : As per customer order

Technical Data

Temperature Range  - 400C to +700C (3000 Hours)
Standard : IS 2465
Test Voltage : 3 kV
Conductor Resistance:IEC 60228/BS 6360

Features

Flame retardant
Highly resistant against acids, lyes, Petrol and diesel.
Flexible conductors with PVC normal insulation thickness for battery cables.
Extra flexibility.

Conductor Construction Insulation
Wall Thickness
Nom.
Cable Max.    Conductor
Resistance
at 200C
Current
Carrying
Capacity

Standard
Length*
Nominal
Cross-
Section
No. of
Strands
Diameter of
Single wire
max.
Conductor
Diameter
Nom.
Overall
Diameter
Max.
Weight Approx.
mm nos. mm mm mm mm kg/km Ω/km Amps mtrs
16 126 0 .40 5 .21 1 .00 8 . 10 175 .2 1 .210 78 500
25 196 0 .40 6 .50 1 .20 10 .00 270 . 1 0 .780 106 500
35 276 0 .40 7 .71 1 .20 1 1 .40 366 .2 0 .554 144 500
50 396 0 .40 9 .23 1 .40 13 .70 519 .9 0 .386 200 500
70 360 0 .50 1 1 .00 1 .40 15 .80 713 .3 0 .272 262 500
95 475 0 .50 12 .64 1 .60 18 .40 934 .4 0 .206 313 500
120 608 0 .50 14 .30 1 .60 19 .90 1 178 .4 0 . 161 369 500
150 756 0 .50 15 .95 1 .80 22 .40 1482 . 1 0 . 129 437 500

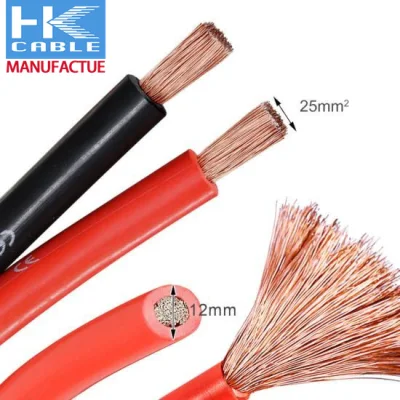

Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm

e

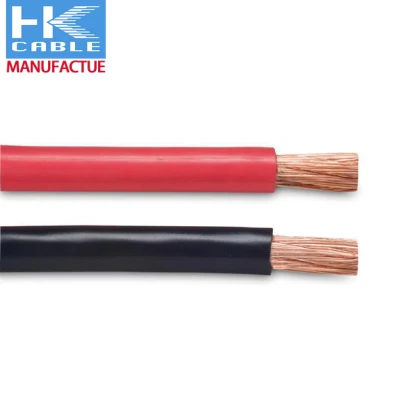

Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm
              Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
              The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
               transportation links to the neighboring Shanghai and Ningbo. On the basis of technology development, the company has taken in a
              group of experienced personnels who are talented in senior management, marketing  and skills of producing. In the company, great
              attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
              the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
              speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
              keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
              our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.

Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm

Awm PVC Electric Cable Core Wire 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20mm
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
