Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Get high-quality bare copper coaxial cable making machine for 2.5mm electric wire at our factory. We are committed to delivering superior products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Production Process
  • Exhibition and partners
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
JLK400---JLK630
Warranty
12 Months
Automatic Grade
Automatic
Type
High-speed Stranding Machine
Single Strand Diameter
1.2-5.0mm
Maximum Stranding Diameter
50mm
Stranding Pitch
67~1272mm
Cage Speed
50~125r/Min
Traction Speed
8.37~63.63m/Min
Traction Wheel Diameter
2000mm
Pay-off Bobbin in Cage
Pn630
Central Pay-off Bobbin
Pn800~Pn1600
Take-up Bobbin
Pn1250~Pn2500
Central Height
1000mm
Motor
Siemens
Color
Customized
Transport Package
Standard International Shipment Packing
Trademark
CP
Origin
Foshan
HS Code
8479400000
Production Capacity
5 Sets/Month for Rigid Stranding Machine

Packaging & Delivery

Package Size
160.00cm * 200.00cm * 200.00cm
Package Gross Weight
100000.000kg

Product Description



Product Description

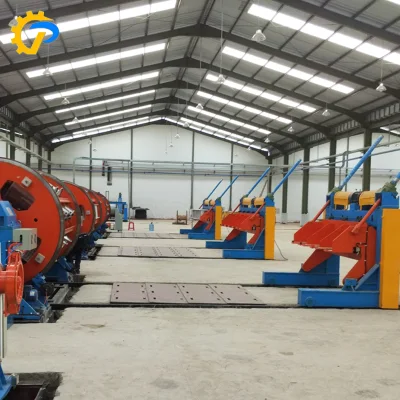

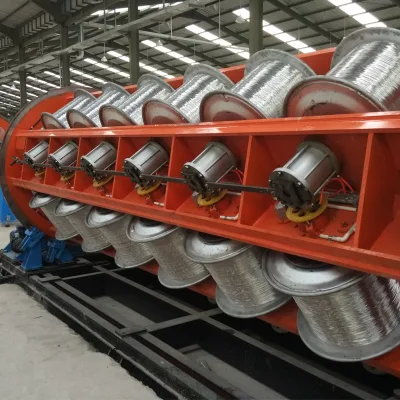

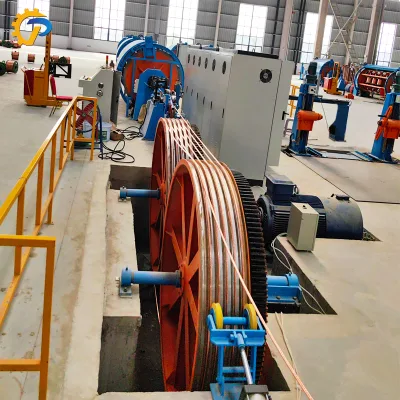

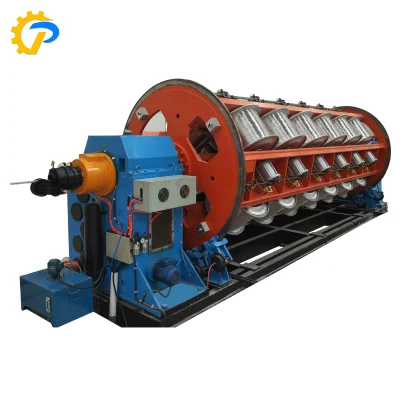

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Main components

1.Φ630Shaft-less pay-off rack
2.'#' type leading wire stand
3.6-Bobbins,12-Bobbins,18-Bobbins twister
4.Wire-stranded and Tight pressing line die holder
5.Overall hanging device under the side
6.Track meter counting
7.Φ600Double bobbins wrapped device
8.Φ2000Two wheeled device with double-power
9.Φ2600Portal pay-off and take-up stand
10.Electric control system
11.Arc type electric protective cover

This machine is used for stranding bare copper,aluminum and ACSR conductor with compacting use
Model Main Specification CLK400 CLK500 CLK630
Single Wire Diameter 1.2mm-5mm 1.2mm-5mm 1.2mm-5mm
Max Stranded Diameter 50mm 50mm 50mm
RPM 88-200r/min 78-189r/min 65-143r/min
Stranding Pitch 49-630mm 49-816mm 58-978mm
Line speed 55.35m/min 63.63m/min 63.63m/min
Pay Off Drum Size In Cage PN400mm PN500mm PN630mm
Central Pay Off Drum Diameter PN800-1600mm PN800-1600mm PN800-1600mm
Take Up Drum Diameter PN800-1600mm PN1000-2000mm PN1000-2000mm


Company Profile

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire
Guangdong Chipeng Electrical Technology Co.,Ltd has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries.We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Production Process



Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire


Exhibition and partners

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric WireBare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire



Certifications

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

Packaging & Shipping

Bare Copper Coaxial Cable Making Machine for 2.5mm Electric Wire

FAQ

Q1.Are you the manufacturer or trading company?

-A:We are the manufacturer.Our company has a technical administration team who
engages wire and cable equipment industrial more than ten years.

Q2.What is your company's main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.

Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.

Q4.How long will the delivery time take?
-A:About 80 days

Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out ourengineers without 2 days to solve customer's problem.

Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality
