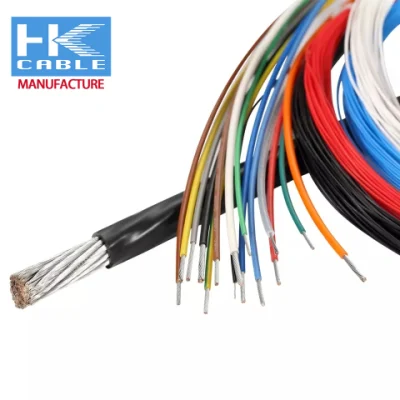

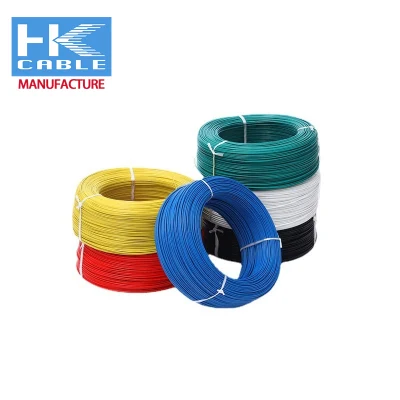

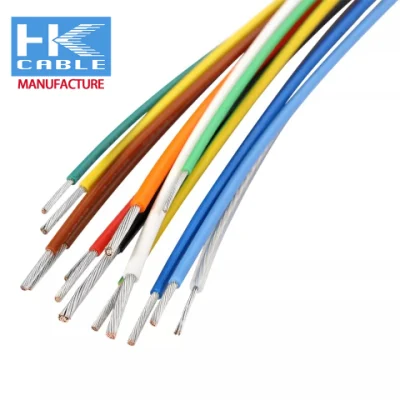

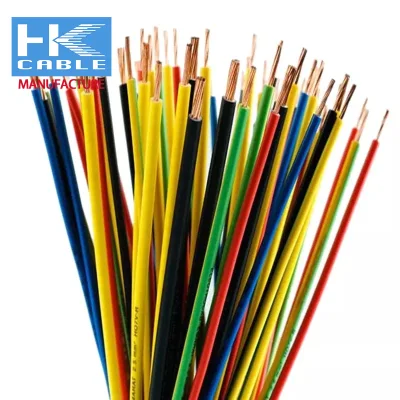

Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable

UL1569 PVC Insulated Copper Cable, single core electrical wire in various sizes. Factory direct, high quality and durable construction. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
UL1569
Material Shape
Round Wire
Range of Application
Electric Appliance Internal Wiring
Certification
ISO9001, CE, RoHS
Brand
Hanker
Rated Voltage
300V
Rated Temperature
80c 90c 105c
Transport Package
610m/Roll
Specification
10-30awg
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month

Product Description

Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 sq mm Single Core Electrical Wire Copper Cable
Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable
wire printing:
Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper CableStyle 1569 Single Conductor with extruded insulation

Rating: 80, 90 or 105 deg C, 300 Vac, Horizontal flame.
Conductor: 30 AWG - 2 AWG, solid or stranded.
Insulation: Extruded PVC.
Covering: Optional, Extruded PVC, 9 mils minimum average thickness, 8 mils minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. Tag may also indicate the following, "600 Volts Peak for Electronic Use Only."



UL TYPE
Gauge
(AWG)
Construction
(no/mm)
conductor outer diameter
(mm)
insulation thickness
(mm)
wire O.D
(mm)

Max Cond. resistance(Ω/km ,20ºC
packing
FT/ROLL METER/ROLL
1569 30 1/0.254 0.25 0.4 1.05 361
7/0.1 0.3 0.4 1.1 381 2000 610
28 1/0.32 0.32 0.39 1.1 227
7/0.127 0.38 0.41 1.2 239
7/0.127 OS-1 0.38 0.41 1.2 239
26 1/0.404 0.4 0.43 1.25 143
7/0.16 0.48 0.41 1.3 150
7/0.16 OS-1 0.48 0.41 1.3 150
24 1/0.511 0.51 0.42 1.35 89.3
11/0.16 0.61 0.4 1.4 94.2
7/0.2 OS-1 0.6 0.41 1.4 94.2
22 1/0.643 0.64 0.43 1.5 56.4
17/0.16 0.76 0.42 1.6 59.4
7/0.254 OS-1 0.76 0.42 1.6 59.4
20 1/0.813 0.81 0.42 1.65 35.2
26/0.16 0.94 0.43 1.8 36.7
7/0.32 OS-1 0.96 0.42 1.8 36.7
18 1/1.024 1.02 0.41 1.85 22.2 1000 305
41/0.16 1.18 0.46 2.1 23.2
7/0.404 OS-1 1.2 0.45 2.1 23.2
16 1/1.129 1.29 0.46 2.2 14
26/0.254 1.49 0.46 2.4 14.6
14 1/1.6 1.6 0.45 2.5 8.78
41/0.254 1.88 0.41 2.7 8.96
12 65/0.254 2.36 0.42 3.2 5.64
10 7/15/0.254 3.42 0.44 5.05 3.54


Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable
              Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
              The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
               transportation links to the neighboring Shanghai and Ningbo. On the basis of technology development, the company has taken in a
              group of experienced personnels who are talented in senior management, marketing  and skills of producing. In the company, great
              attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
              the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
              speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
              keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
              our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.

Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable

Cable Manufacturer UL1569 PVC Insulation 0.5 0.75 1.0 1.5 2.5 4 6 Sq mm Single Core Electrical Wire Copper Cable
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
