Basic Info.
Model NO.
GXL
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Bort
Conductor
Stranded, Tinned or Bare Copper Conductor Sample
Sample
Conventional Sample Free Conductor
Producing Experience
10 Years
No. of Cores
One Core or Multi-Cores
Packing
100m/Roll, 305m/Roll, Wrap Plastic Film Packag
Company Type
Manufacturer
Factory Directly
Big Discount with Large Order
Colors
Could Be Customized Color
Delivery Time
in 7-10days
Service
OEM ,ODM
Transport Package
Rolls
Specification
610m
Trademark
BORT
Origin
China
HS Code
85444929
Production Capacity
300, 000km/ Year
Product Description

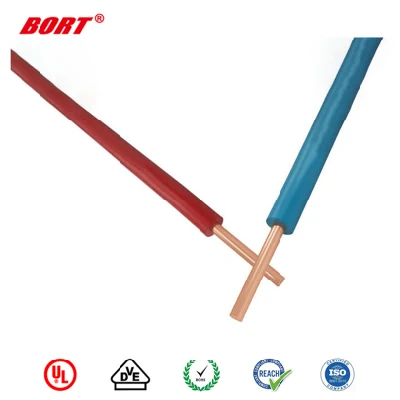

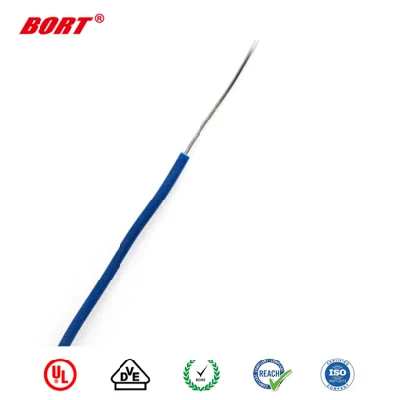

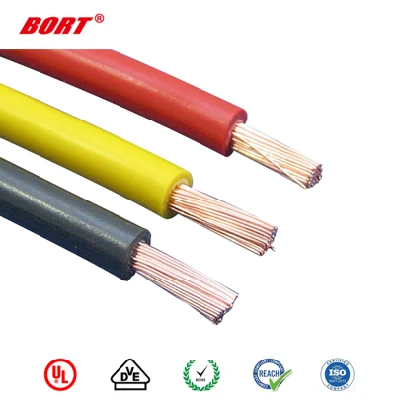

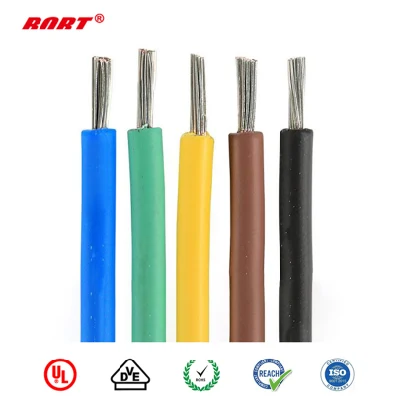

cables electrical copper cable TXL SXL GXL auto cable american automotive wire
★Rated temperature:100ºC
★Reference standard:SAE J 1128/1995
★Stranded ,tinned or bare copper conductor 20~8AWG
★XLPE insulation , comply with ROHS environmental standard
★Passes SAE J 1128/1995 5.6 flame test
★Uniform insulation thickness to ensure easy stripping and cutting
★For internal wiring of vehicle
★Rated temperature:100ºC
★Reference standard:SAE J 1128/1995
★Stranded ,tinned or bare copper conductor 20~8AWG
★XLPE insulation , comply with ROHS environmental standard
★Passes SAE J 1128/1995 5.6 flame test
★Uniform insulation thickness to ensure easy stripping and cutting
★For internal wiring of vehicle
| Conductor | Finished product | DIELECTRIC STRENGTH | ||||
| AWG | Cross Sectional Area | NO.of Cond | Dia. | Insulation Thick. | Outside Thick. | |
| mm2 | No./mm | mm | mm | mm | (VAC1min) | |
| 20 | 0.5 | 7/0.31 | 0.93 | 0.59 | 2.10 | 1000.00 |
| 18 | 0.8 | 16/0.254 | 1.17 | 0.62 | 2.40 | 1000.00 |
| 16 | 1 | 26/0.254 | 1.49 | 0.61 | 2.70 | 1000.00 |
| 14 | 2 | 19/0.36 | 1.8 | 0.68 | 3.00 | 1000.00 |
| 12 | 3 | 19/0.45 | 2.25 | 0.88 | 3.60 | 1000.00 |
| 10 | 5 | 19/0.57 | 2.85 | 1.08 | 4.60 | 1000.00 |
