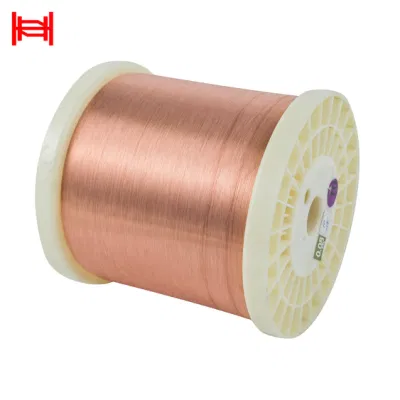

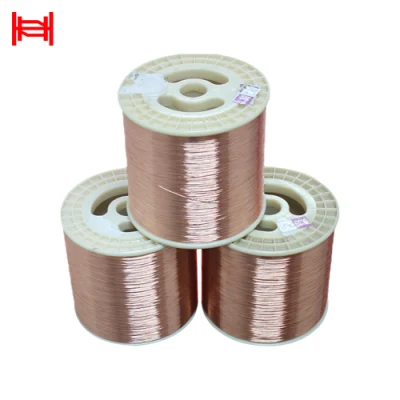

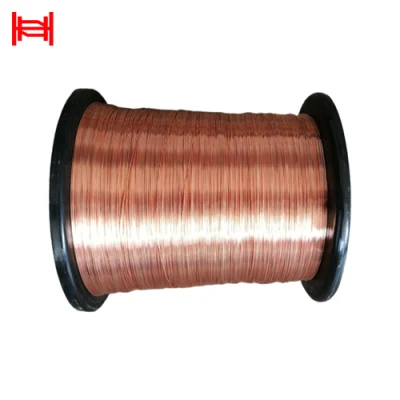

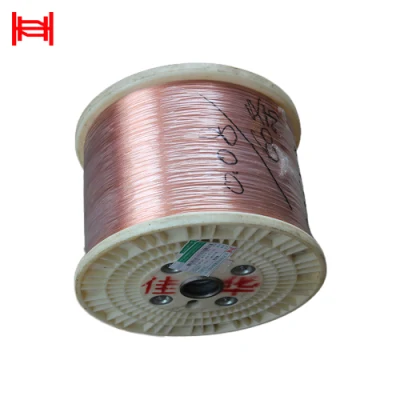

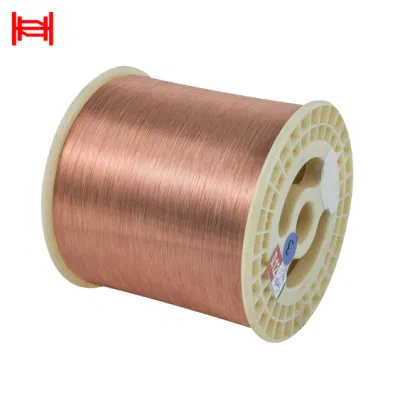

China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire

Get high-quality electrical copper clad steel conductor at wholesale prices from our factory. 25% CCS single wire for superior performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Application
  • Company Profile
  • Workflow
  • Our Partners
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
CCS Wire
Conductivity
15%CCS,18%CCS,21%CCS,25%CCS,30%CCS,40%CCS
Mechanical Status
Annealed(a) and Hard Drawn(H)
Range of Application
Electronic Wire Conductor Material
Standards
ASTM B227,ASTM B452,ASTM B910,BS4087
Transport Package
Plastic Reel Packaging and Carton Vacuum Packaging
Specification
0.07mm-3mm
Trademark
Jiahua
Origin
Jiangsu, China
HS Code
72173010
Production Capacity
1200tons/Year

Product Description

Product Description

Copper Clad Steel CCS Wire:
We use cladding or plating craft to make copper around steel coils and create atom bonds between the two metals, so the producers can be processed (annealing) as single metal. During drawing process, the diameters of copper and steel will change at the same rate and the percentage of copper volume keeps the same.

CCS wire can be divided into six types by conductivity: 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS
Two mechanical Status: Annealed (A) and Hard drawn(H)
More CCS wires available on demand: silver plated copper clad steel wire or tinned copper clad steel wire

Application:
All sorts of electronic components connectors
Braided shield wire of power cable
CATV coaxial cable conductor
Conductive cord of field wires
Overhead system for power transmission and telephone lines
Overhead-contact systems for railway and light rail Transit
Computer LAN wire access network cable

China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire



Product Parameters
 Copper-Clad Steel Wire Features
Nominal Conductivity Nominal Density Max.Resitivity at 20ºC Min. Conductivity Min. tensile Strength Min.Copper Thickness Nominal Copper Thickness
% IACS g/cm3 Ω.mm2/m % IACS N/mm2 % of Diameter % of Diameter
21 7.99 0.0907  19.00  345~825 1.5  3
30 8.15 0.0586  29.41  310~760 3.0  7
40 8.24 0.0440  39.21  276~600 5.0  9
70 8.58 0.0265  65.00  241~400 15.0  20

Click to View More Copper Wires→
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire

Application

The  products are widely used in the industries of carbon film resistors, metal film resistors, metal oxide film resistors, fuse resistors, wire-wound resistors, glass glaze resistors, piezoresistors, thermistors, non-inductive resistors, photoresistors, thermal fuses, current fuses, capacitors, jumper wires (jumpers), inductors, transformers, diodes, high-temperature wires, marine cables, triple insulated wires, gas appliance temperature sensors, welding wires, braided thread, grounding rod, flexible flat cables (FFC) and so on.
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire

Company Profile

China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire      Jiangsu Jiahua Metal Wire Co., Ltd. is located in the hometown of the historical and cultural celebrity, Zheng Banqiao, i. e. Xinghua City in the central of Jiangsu. The company, founded in 2009, is engaged in professional production of high-quality and high-demand tinned (electroplated and hot-DIP) copper wires, tinned (electroplated and hot-DIP) copper clad steel wires, tinned (electroplated and hot-DIP) alloy wires, jumper wires (jumpers) and bare copper wires for electronics industry as well as high-standard and special-requirement stranded tinned wires, bare stranded copper wires, stranded plated wires for wire and cable industry. The company inputs a total investment of RMB 5 million and covers a floor area of about 20, 000 square meters and a construction area of 5, 000 square meters. The specifications of products vary from 0.03mm to 3mm, and the packaging modes include PP wound packages, vacuum-chamber packages, PVC shaft-mounted packages, steel-plate packages, steel-rack coiling packages, tight coiling packages, flexible and various, to fully meet the production demand in the industry. Currently, the company's annual production capacity is 3600 tons of tinned copper wires, 1200 tons of tinned copper clad steel wires, 1200 tons of bare copper wires and 800 tons of alloy copper wires.
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire      The company implements the ISO9001, ISO14001, ISO45001 Management System and adheres to the " quality policy of reasonable planning, standard management; Quality first, customer upmost; Continuous improvement, sustainable development", to constantly improve product quality and increase market competitiveness to achieve sustainable development and sustainable development.

China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire

Workflow

The production equipment adopted by the company are redesigned and developed on the basis of absorbing the advantages of the advanced equivalent equipment of Japan, Taiwan and Germany in combination with twenty years of work experience, to ensure the excellence and stability of resistance to high temperature, oxidation, wetting and salt spray and other performances of the products. Thus the equipment is advanced, efficient and precise.
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire

Our Partners

The customers are distributed in Yangtze River Delta, Pearl River Delta, Bohai Bay area, Haixi Area, the Southwest and Guanzhong Area. Our products are also directly exported to countries and regions such as the United States, Mexico, Brazil, Argentina, Germany, France, Poland, Portugal, Italy, Australia, South Korea, Japan, Southeast Asia, South Asia, the Middle East, and Africa.

China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire
Packaging & Shipping

The packaging methods are PP barrel, carton vacuum packing, PVC shaft packing, iron tray packing, iron frame closing packing, tight closing packing, which are flexible and diverse and can fully meet the production needs of customers.
China Wholesale Electrical Copper Clad Steel 25% CCS Conductor Single Wire
