Copper Mc Cable Metal Clad Copper Electrical Wire with Thhn Conductors 14/2

Shop our durable Copper MC Cable with THHN conductors. We are a factory-direct supplier of high-quality electrical wire products. Fast shipping available.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Type MC AC BX Cable
Material Shape
Round Wire
Range of Application
Building Wire
Certification
ISO9001, CCC, RoHS
Brand
Renda
Products Name
Mc AC Bx Cable
UL Listed Type
Mc AC Cable
Standard
UL83, UL4, UL1569
Rated Voltage
Low Voltage 600V, 2000V
Inner Conductor
Xhhw-2 Conductor, or Thhn Conductor
RoHS
Yes
Armored Material
Aluminum/Steel Interlock
Size for Type AC
14AWG-2AWG
Size for Type Mc
14AWG 2000mcm
Jacket
PVC Upon Your Request
Transport Package
Roll, Reel, Coil as Your Requirements
Specification
14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 2AWG
Trademark
RENDA
Origin
China
HS Code
8544492100
Production Capacity
10000000FT/Month

Product Description

Copper Mc Cable Metal Clad Copper Electrical Wire with Thhn Conductors 14/2

Copper MC Cable
Metal Clad Copper Electrical Wire with THHN Conductors 14/2
  Copper Mc Cable Metal Clad Copper Electrical Wire with Thhn Conductors 14/2

APPLICATION
Type MC Cable - Isolated Ground is constructed with soft-drawn copper, Type THHN/THWN
conductors rated 90°C dry available in sizes 12 AWG and 10 AWG, and two insulated grounding conductors--one solid green and the second green with yellow stripes. The conductors are cabled together and a binder tape bearing the print legend is
wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.

Type AC Cable BX is constructed with soft-drawn copper, Type THHN insulated conductors which are
individually wrapped with a moisture-resistant, flame-retardant paper covering. Aluminum interlocking armor is applied over the assembly. A 16 AWG aluminum bond wire is placed inside the armor, runs longitudinally and is in intimate contact with the armor for its entire length.



Power Tray Cable Applications
  • Type MC Cable is suitable for use as follows:
    • Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
    • Power, lighting, control, and signal circuits.
    • Fished or embedded in plaster.
    • Concealed or exposed installations.
    • Environmental air-handling spaces per NEC 300.22 (C).
    • Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
    • Installation in cable tray and approved raceways.
    • Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
    • Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

  • Type AC Cable is suitable for use as follows:
    • Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
    • Power, lighting, control, and signal circuits.
    • Dry locations only.
    • Fished or embedded in plaster.
    • Concealed or exposed installations.
    • Environmental air-handling spaces per NEC 300.22 (C).
    • Installation in cable tray and approved raceways.
    • Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).

STANDARDS & REFERENCES

Type AC Cable meet or exceeds the following requirements
• UL 4, 83, 1581, 2556
• Federal Specification A-A59544 (formerly J-C-30B)
• National Electrical Code Article 320 Armored Cable: Type AC

Type MC Cable meets or exceeds the requirements of the following
• UL 83
• UL 1569
• UL 1685
• Federal Specification A-A59544 (formerly J-C-30B)
• FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test
• NEC
• Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems

CONSTRUCTION

Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry
available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.

Type AC Cable is constructed with soft-drawn copper, Type THHN insulated conductors which are
individually wrapped with a moisture-resistant, flame-retardant paper covering. Aluminum interlocking armor is applied over the assembly. A 16 AWG aluminum bond wire is placed inside the armor, runs longitudinally and is in intimate contact with the armor for its entire length.
.
Conductor Size  Solid or Stranded  Grounding Conductor Size  Overall Diameter Weight  Ampacity (Amps)
 (AWG)   (AWG)  (inches)  (lbs./1000ft.)  60 75 90
14-2 Solid  14 0.439 77 15 15 15
14-3 Solid  14 0.464 94 15 15 15
14-4 Solid  14 0.494 112 15 15 15
12-2 Solid  12 0.527 137 20 20 20
12-3 Solid  12 0.505 129 20 20 20
12-4 Solid  12 0.539 155 20 20 20
10-2 Solid  10 0.542 150 30 30 30
10-3 Solid  10 0.58 189 30 30 30
10-4 Solid  10 0.623 229 30 30 30

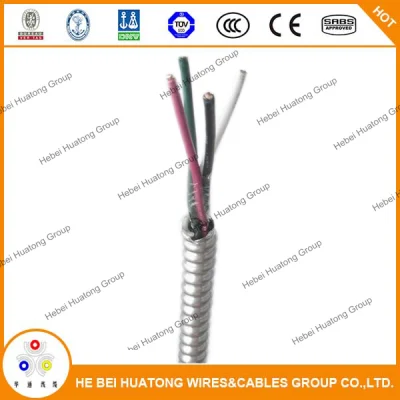

Copper Mc Cable Metal Clad Copper Electrical Wire with Thhn Conductors 14/2
