Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe

Get high-quality Electrical Cable Specifications AAC Conductor from our factory in Oman, Turkmenistan, Tunisia, and Zimbabwe. Contact us for durable cables.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
Overview

Basic Info.

Model NO.
AAC
Wire Core Material
Bare Aluminium Wire
Certification
CE, ISO, CCC
Model
Acc
Brand
Kunlun
Structure
DIN 48204, BS 215, Canadian, GB 1179, IEC1089
Product Name
AAC Conductor
Production Experience
Over 20 Years
Cable Price
Get The Quotation Within 12 Hours
Transport Package
Wooden Drum
Specification
100m/Roll
Trademark
kunlun
Origin
China
HS Code
8544492100
Production Capacity
100000 Million Km

Product Description

Product Description

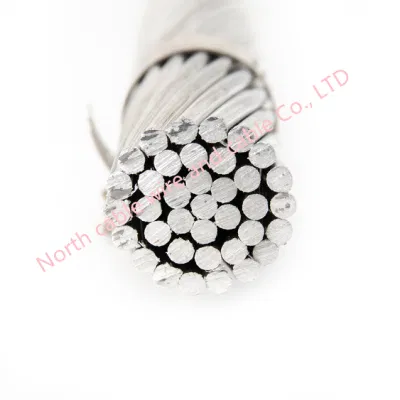

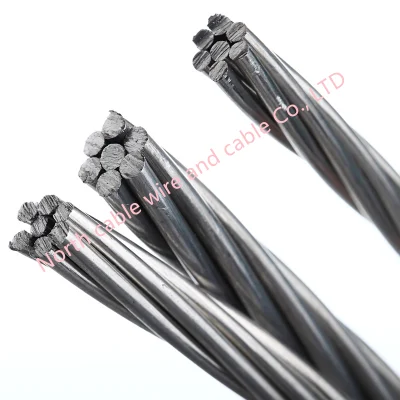

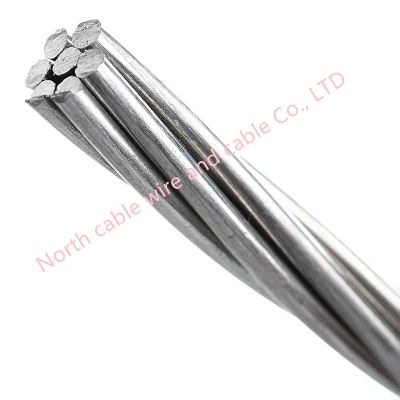

AAC Conductor (All Aluminium Conductors) is also known as aluminium stranded conductor. We manufacture this conductor from electrolytically refined aluminium with the purity of minimum 99% aluminium. The spacing between All Aluminium Conductors is short and their supports are close.

These aluminium conductors are made up of one or more aluminium wires strands depending on their usage. These conductors are mainly used in urban areas for electricity transfer. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties. Apparently, we have gained recognition as one of the prominent AAC Aluminum Conductor Manufacturers and Suppliers.
 AAC 25mm2 63mm2 100mm2 200mm2 400mm2 630mm2 IEC 1089 Standard All Aluminum
Conductor Specifications:

B-230 aluminum wires, 1350-H19 for electrical purpose
B-231 aluminum conductors, concentrically lay-stranded
B-400 compact round concentric-lay-stranded aluminum 1350 conductors
We manufacture AAC conductor as per following standards:-BS 215 Part 1,IEC 207, DIN 48201-5,ASTM B231,IS 398
Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia ZimbabweElectrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe

IEC1089 Standard:
Code Number Area mm2 Number of wires Diameter LinearMass kg/km Rated Strength kN D.C Resistance Ω/km
Wire mm Conductor mm
10 10 7 1.35  4.05  27.4  1.95  2.8633
16 16 7 1.71  5.12  43.8  3.04  1.7896
25 25 7 2.13  6.40  68.4  4.50  1.1453
40 40 7 2.70  8.09  109.4  6.80  0.7158
63 63 7 3.39  10.20  172.3  10.39  0.4545
100 100 19 2.59  12.90  274.8  17.00  0.2877
125 125 19 2.89  14.50  343.6  21.25  0.2302
160 160 19 3.27  16.40  439.8  26.40  0.1798
200 200 19 3.66  18.30  549.7  32.00  0.1439
250 250 19 4.09  20.50  687.1  40.00  0.1151
315 315 37 3.29  23.00  867.9  51.97  0.0916
400 400 37 3.71  26.00  1102.0  64.00  0.0721
450 450 37 3.94  27.50  1239.8  72.00  0.0641
500 500 37 4.15  29.00  1377.6  80.00  0.0577
560 560 37 4.39  30.70  1542.9  89.60  0.0515
630 630 61 3.63  32.60  1738.3  100.80  0.0458
710 710 61 3.85  34.60  1959.1  113.60  0.0407
800 800 61 4.09  36.80  2207.4  128.00  0.0361
900 900 61 4.33  39.00  2483.3  144.00  0.0321
1000 1000 61 4.57  41.10  2759.2  160.00  0.0289
1120 1120 91 3.96  43.50  3093.5  179.20  0.0258
1250 1250 91 4.18  46.00  3452.6  200.00  0.0231
1400 1400 91 4.43  48.70  3866.9  224.00  0.0207
1500 1500 91 4.58  50.40  4143.1  240.00  0.0193
Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe Electrical Cable Specifications AAC Conductor Oman Cables AAC Turkmenistan Tunisia Zimbabwe FAQ

Q1. Are you a manufacturer?

Yes, we are a manufacturer own factory with almost 20 years experiences.

Q2. What are your main products?

Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System

Q3. Which countries and regions have your products been exported to ?

Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.

Q4. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.

Q5. What's the package of products ?

The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.

Q6. How can I get samples?

Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.

Q7. What is our payment terms ?

We can accept the following payment terms: T/T, L/C.
