En 50618 PV1f DC Ring Cable 4mm 6mm Extension PV Cables for Solar Power Panel Station Connector IEC 62930 Cord Price Sun Battery Powered Extension

Looking for high-quality PV cables for your solar power station? Our factory offers the En 50618 PV1f DC Ring Cable in 4mm and 6mm, IEC 62930 compliant. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
PV cable
Wire Core Material
Tinned Wire
Certification
ISO, CCC, CE
Model
PV1-F
Brand
Ren Da
Products Name
Solar Cable
Voltage Rating
0.6/1kv
Conductor
Tinned Copper Wire
Insulation
XLPE
Sheathed
XLPE
Temperature Rating
120c
Thermal Endurance Properties
25years
Standard
2 Pfg 1169/08.2007
Size
2.5mm2 4.0mm2 6.0mm2 10mm2
Sheathed Color
Black and Red
Transport Package
Soft Packing
Specification
2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2
Trademark
REN DA
Origin
Hebei Province, China
HS Code
8544492100
Production Capacity
1000km/Week

Product Description


pv1f solar cable 4mm2 6mm2  PV cable for solar power panel station

1 Application

TUV Approved Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in a fixed installation, internal connection of solar panels. This product has excellent UV-resistant performance and is TUV approved.

2 Product Description (TUV and UL certificate)

1 .Standard: 2 PFG 1169 08.2007 and UL 4703

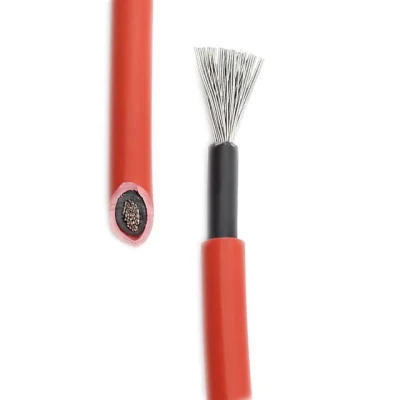

2 . Conductor Material: Stranded tinned copper
3. Insulation Material: XLPE
4. Sheath Material:XLPE
5. standard: TUV 2Pfg 1169 08.07

6. Rated voltage: AC Uo/U0.6~1.0KV, DC1.8KV

8.Ambient temperature: -40~+90C

9. The expected period of use: 25years

10. Flame rated IEC60332-1-2

3 Characteristic of solar cable:
1. Double insulationelectron beam cross-linked

2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering

3. Excellent resistance to abrasion

4. Halogen-free, flame retardant, low toxicity

5. Excellent flexibility and stripping performance

6. High current carrying capacity

7. TUV and UL approved

4  Datasheet of Solar cable:

Sectional area (mm2) 0.5 0.75 1 1.5 2.5 4 6 10 16
Copper (Ω/km) 36 24.5 18.1 12.1 7.41 4.61 3.08 1.83 1.15
Tinned copper (Ω/km) 36.7 24.8 18.2 12.2 7.56 4.7 3.11 1.84 1.16
Sectional area (mm2) 25 35 50 70 95 120 150 185 240
Copper (Ω/km) 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754
Tinned copper (Ω/km) 0.734 0.529 0.391 0.27 0.195 0.154 0.126 0.1 0.0762

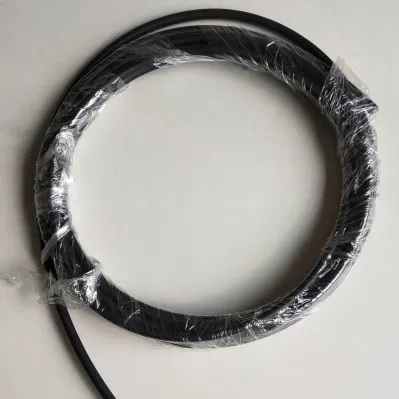

5 Packing of sloar cable:
