Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire

Get the best quality Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire from our factory. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
6242Y
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Flat Wire
Range of Application
Building and House
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Qinshan
Insulation Color
Requirement
Voltage
300/500V
Temperature Range
-15 ~ +70
Name
Twin Flat Cable
Standard
BS6004
Transport Package
Roll Packing& Plastic Drum
Specification
1.0mm2 to 16mm2
Trademark
Qinshan
Origin
China
HS Code
8544492900
Production Capacity
600000000 Rolls /Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg

Product Description

Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire                 --------------manufacture electric &cable for more than 35 years with good quality and best prices to export many countries.

Factory Price Pvc Copper Cable Grey Flat Insulated two/three Core And Earth 2.5 Mm Heating Wire twin and earth electric wire

Construction :
1.Conductor: 6192Y/6242Y  Bare copper wire(solid)  class1
                 Bare copper multi wire(stranded)  class2
2.Insulation:PVC Compound
4.Sheath: PVC Compound
3. Sheath Color:
Grey  ,  Black ,  White


Techical Data :
Standard:BS6004
Fixed installed: -30ºC  up to +70ºC
At short circuit of max.5s  up to 160ºC
Nominal Voltage: 6192Y/6242Y  300/500V

Min inner bending radius:6D(D=Outdiameter)
Behaviour in fire:
Flame retardant cable acc.to IEC60332--1


 Application:
Twin flat&Twin with earth ables 6192Y/6242Y is used fordomestic and light industrial wiring.it can be installed in dry or damp conditions clipped to surface,on trays or in free air where there is little risk of mechanical damage.Suitable for laying into trunking or conduit when mechanical protection isrequired.also suitable for embedded in plaster or laid in walls.


Specification  Parameter : Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire
No.of cores x Nominal section area Nominal Construction of conductor Nominal
Insulation
thickness
Nominal
Sheath thickness
Nominal
Overall diameter
Nominal
Cable weight
Max.Resistance of conductor
at 20ºC
No.X mm² No.X mm mm mm mm kg/km <=(Ω/km)
 6192Y  / 6193Y   Twin flat     BS6004
2x1.0  2X1.13 0,6 0,8 4.2x6.5 49 18,10
2x1.5 2X1.38 0,7 0,8 4.6x7.4 65 12,10
2x2.5 2X1.78 0,8 0,8 5.4x8.8 97 7,41
2x4.0 2X7/0.85 0,8 0,9 6.1x10.2 138 4,61
2x6.0 2X7/1.04 0,8 0,9 6.9x11.5 189 3,08
2x10.0 2X7/1.35 1,0 0,9 8.2x14.0 295 1,83
2 x 16.0 2X7/1.70 1,0 1,0 9.4x16.2 430 1,150
3x1.0  3X1.13 0,6 0,8 4.2x8.9 71 18,10
3x1.5 3X1.38 0,7 0,8 4.6x10.2 95 12,10
3x2.5 3X1.78 0,8 0,8 5.4x12.2 142 7,41
3x4.0 3X7/0.85 0,8 0,9 6.1x14.5 206 4,61
3x6.0 3X7/1.04 0,5 0,9 6.9x16.2 280 3,08
3x10.0 3X7/1.35 1,0 0,9 8.2x19.8 438 1,83
3 x 16.0 3X7/1.70 1,0 1,0 9.4x22.9 640 1,150
6242Y/Twin With Earth Cables
2x1.0+1.0 2x1.13+1.13 0,6 0,8 4.2x7.6 63 18,10
2x1.5+1.0 2x1.38+1.13 0,7 0,9 4.6x8.5 70 12,10
2x2.5+1.5 2x1.78+1.38 0,8 1,0 5.4x10.2 119 7,41
2x4.0+1.5 2x7/0.85+1.38 0,8 1,0 6.1x11.6 162 4,61
2x6.0+2.5 2x7/1.04+1.78 0,8 1,1 6.9x13.3 227 3,08
2x10.0+4.0 2x7/1.35+7/0.85 1,0 1,2 8.2x16.5 355 1,83
2x16.0+6.0 2x7/1.70+7/1.04 1,0 1,3 9.4x19.2 517 1,150

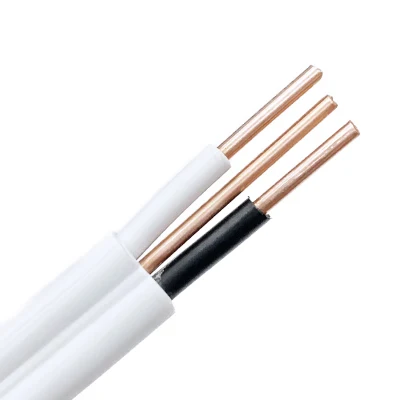

Product Show :Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire Factory Price PVC Copper Cable Grey Flat Insulated Two/Three Core and Earth 2.5 mm Heating Wire Twin and Earth Electric Wire
