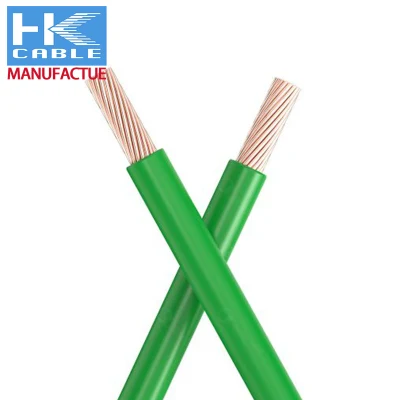

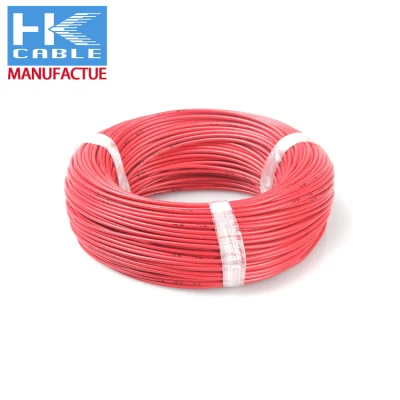

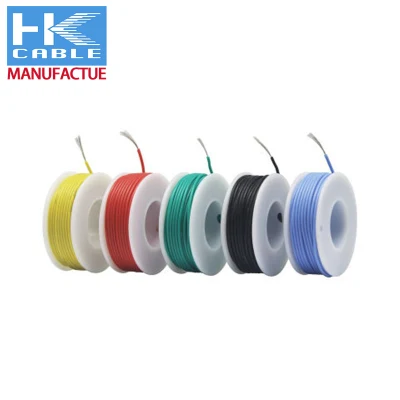

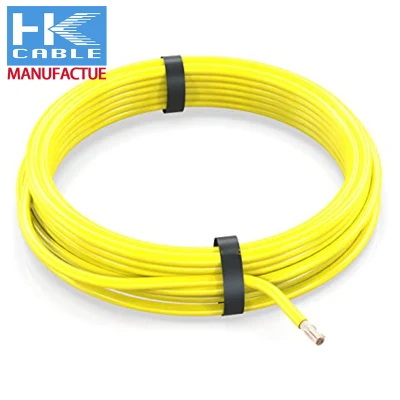

Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable

Our factory manufactures high-quality Flr6y-a Ingle Core PV Cables and panel connectors using tinned copper wire for reliable solar power systems.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FLR6Y-A
Material Shape
Round Wire
Range of Application
Electric Cable for Power
Certification
ISO9001, CE, RoHS
Brand
Hanker
Conductor
Stranded Copper
Transport Package
100m/Roll
Specification
0.35-2.5 mm2
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month

Product Description


FLR6Y-A ingle core pv cables 4mm2 6mm2 panel connector dc wires solar power cables Electrical Wire Tinned Copper Cable

Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable

Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable

APPLICATION AND DESCRIPTION

This FEP insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

CONSTRUCTION

  • Conductor: Cu-ETP1 bare/tinned according to DIN EN 13602                 Insulation: FEP
  • Standard Compliance: ISO 6722 Class F

SPECIAL PROPERTIES:

Good thermal properties

TECHNICAL PARAMETERS

Operating temperature: -65°C to +210°C

DIMENSIONS AND WEIGHT

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of ires Diameter of Conductor
max.
Electrical Resistance at 20°C Bare/Tinned
max.
Nominal Thickness Overall Diameter Overall Diameter Weight approx.
min. max.
mm2 No./mm mm mΩ/m mm   mm kg/km
1x 0.35 7/0.26 0.8 54.4/55.5 0.2 1.2 1.3 4
1x 0.5 19/0.19 1 37.1/38.2 0.22 1.4 1.6 7
1x 0.75 19/0.23 1.2 24.7/25.4 0.24 1.7 1.9 9
1x1 19/0.26 1.35 18.5/19.1 0.24 1.9 2.1 12
1x 1.5 19/0.32 1.7 12.7/13.0 0.24 2.2 2.4 17
1x 2.5 19/0.41 2.2 7.6/7.82 0.28 2.7 3 27
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.

Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable
              Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
              The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
               transportation links to the neighboring Shang Hai and Ning Bo. On the basis of technology development, the company has taken in a
              group of experienced personnels who are talented in senior management, marketing  and skills of producing. In the company, great
              attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
              the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
              speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
              keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
              our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.

Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable Flr6y-a Ingle Core PV Cables 4mm2 6mm2 Panel Connector DC Wires Solar Power Cables Electrical Wire Tinned Copper Cable
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days.
