High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

Looking for high quality PV solar electric power wire cable? Our factory offers 1.5-35mm2 sizes for your solar system needs. Shop now for reliable and efficient cables.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Technical Parameter
  • Detailed Photos
  • Company Profile
  • Our Advantages
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
Pv1-F
Insulating Material
XLPE
Conductor Type
Copper
Brand
Huayuan
Certification
RoHS CE
Wire Core Material
Bare Copper Wire
Color
Black
Rated Voltage
U0/U:0.6/1 Kv AC; 0.9/1.5kv DC
Maximum AC Voltage
1.8kv DC
Insulation Resistance
1000Ω-Km
Spark Test
6000 VAC (8400 VDC)
Withstand Voltage
6500 VAC for 5 Min
Room Temperature
-40ºC ~ +90
Maximum Conductor Temperature
IEC/En 60216-1 120°c (20000h)
Short Circuit Temperature
200ºC/5 S
Thermal Resistance Test
En 60216-2 (+120° C)
High Temperature Pressure Test
En 60811-3-1
Heat and Humidity Resistance
En 60068-2-78, 85% Humidity
Transport Package
Drum or Roll
Specification
PV1-F
Trademark
Huayuan
Origin
China
HS Code
8544492100

Packaging & Delivery

Package Size
100.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.500kg

Product Description




Product Description

Product name Photovoltaic cable PV1-F
Conductor Copper
Insulation material PVC
Rated voltage DC 0.9/1.8KV
Colour blue,white
Application site Home decoration electricity, urban electricity
Size pv1-F 6
Other specifications can consult customer service
Starting batch 100meters

Technical Parameter

No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm Insul.
Thick. (mm)
Current Aarring Capacity (A)
1X1.5 30/0.25 1.58 1.14 30.00
1X2.5 50/0.256 2.04 1.14 41.00
1X4.0 56/0.3 2.59 1.14 55.00
1X6.0 84/0.3 3.17 1.14 70.00
1X10 78/0.4 4.07 1.52 98.00
1X16 128/0.4 5.22  1.52 132.00
1X25 199/0.4 6.51 1.52 176.00
1X35 279/0.4 7.71 1.52 218.00

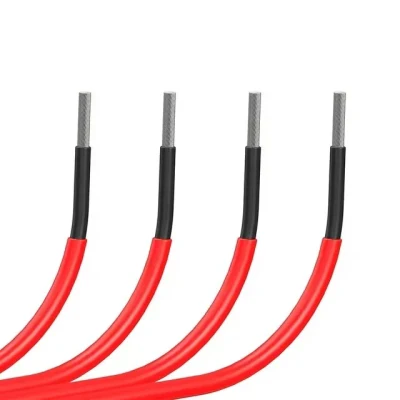

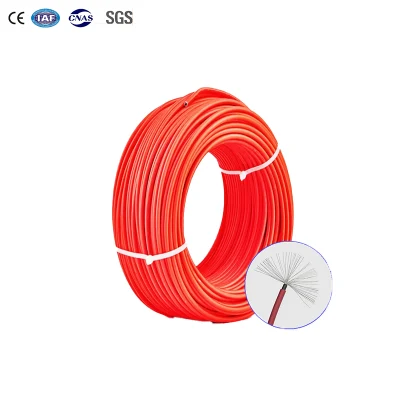

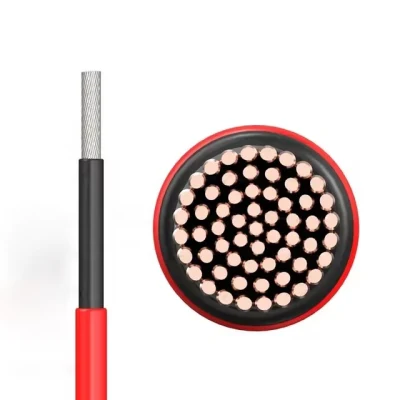

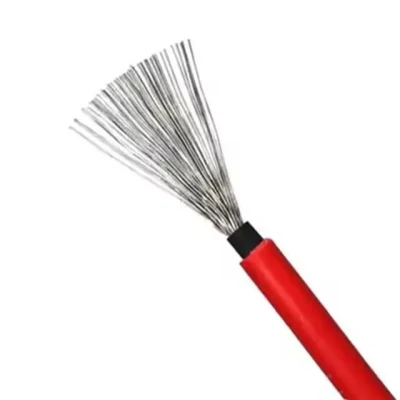

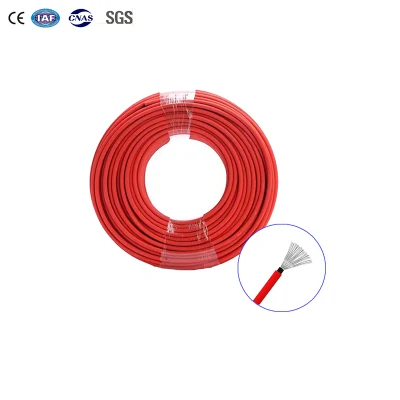

Detailed Photos



High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

Company Profile

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System
High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

Our company is a professional manufacturer of wires and cables in the Chinese wire and cable industry. It is a wire and cable manufacturer producing electronic and electrical equipment and electromechanical buildings in Shenyang, Liaoning Our company focuses on the innovation and research and development of wire and cable, special cable products.  At the beginning of the establishment of the enterprise, the founder of the enterprise managed the enterprise with the core   concept of "people-oriented, honest andinnovative, and leading service". The business philosophy of the enterprise was "honesty first, credibility first, quality first, and benefit sharing", guiding the development of the enterprise. With integrity as the heart, the enterprise gained trust from society, the market, customers, and colleagues. Deeply aware of the importance of talent, integrity, innovation, quality, and service to enterprises, we continuously develop and improve the enterprise, and adhere to the corporate strategy of "steady development, survival through competition, pragmatic innovation, and persistent integrity".
Leading the way in the wire and cable industry in proposing "efficient feedback, quick response" The service concept of "dedicated service, best efficiency" enables the establishment of a green channel between supply and demand with customers, achieving a "win-win" situation. With the efforts of the enterprise to develop and grow, we will focus on strengthening the brand building of the enterprise, the construction of enterprise culture, the cultivation of enterprise talents, the improvement of enterprise services, and establish a good brand image of the enterprise and products. Huayuan Wire and Cable Manufacturing Co., Ltd. is willing to create a better future with excellent employees with high-quality products and excellent services.

Our Advantages

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

Packaging & Shipping

High Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar SystemHigh Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar SystemHigh Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar SystemHigh Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar SystemHigh Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar SystemHigh Quality 1.5 2.5 4 6 10 16 25 35mm2 Photovoltaic PV Solar Electric Power Wire Cable for Solar System

FAQ



Q:Are you a manufacturer or a trading company?
A:We are a production manufacturer, and we have our own cable factory in Shenyang, Liaoning Province, China. We only produce the best quality, and you can rest assured of the quality.

Q:Can you produce and manufacture products according to customer requirements?
A:Yes, we can customize the product according to your requirements

Q:What is your delivery time?
A:Generally speaking, the express way about 5-9 days, the other way of shipping the specific time our sales staff will tell you clearly before you place an order!

Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q: What is your lead time for mass production?
A: Honestly, it depends on order quantity and products complexity. Normal lead time is 2-4 weeks.

Q: What is the package of the cable ?
A:The package is usually wooden drum or steel wooden drum or coil. also according to customer's require
