Basic Info.
Model NO.
UL 3239
Conductor Material
Copper
Sheath Material
Silicone Rubber
Insulation Material
PVC
Material Shape
Round or Falt
Range of Application
LSOH
Certification
ISO9001, CCC, RoHS
Brand
Qinshan
Environment Testing
Pass RoHS
Rated Temperature
-80ºC~+250ºC
Color
Customized by Buyer
Rated Voltage
300V-750V
Transport Package
Plastic
Specification
0.22-2.5mm2
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
8000000meters/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

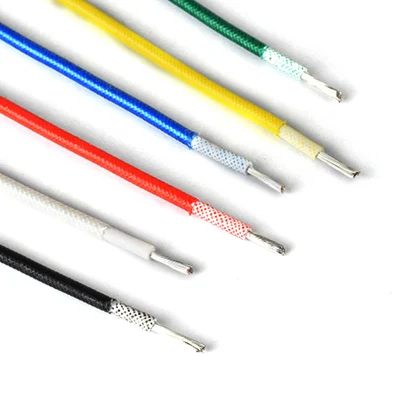

High Quality Wholesale wiring Voltage Cable UL 3239 Silicone Copper Electrical flexibe Wire
Construction :
The resistance alloy wire is wound on the glass fiber wire as the core wire (spiral), and the outer layer is covered with the silicon rubber layer.
Characteristic:
Technical Parameters:
Product Details:
Construction :
The resistance alloy wire is wound on the glass fiber wire as the core wire (spiral), and the outer layer is covered with the silicon rubber layer.
1. It has excellent heat resistance. It can be used for a long time at 100 ºC without any performance change. It can be used for 10000 hours at 160 ºC.
2. It has good insulation, the insulation resistance is more than 500m Ω, the resistance value is stable in a wide range of temperature and frequency, and it has good resistance to high voltage corona discharge and arc discharge.
3. It has good cold resistance and good rationalization in medical treatment.
Characteristic:
| External Diameter | 2mm to 4mm | 2mm to 6mm |
| Heating Coil Circling Skelton | 0.5mm to 1.5mm | |
| Heating Coil | Nichrome or CuNi wire | |
| Insulation Layer | 105°C PVC | Silicone Rubber |
| Tolerance | DC Resistance Value,±5% External Diameter:+0.2/-0.1mm | |
| Output Power | To 15W/M | To 40W/M |
| Voltage | Highest 600V | |
| Maximum Surface Temperature | 105°C | 200°C |
| Minimum Surface Temperature | -30°C | -60°C |
| Hot Deformation Test | ≤50% | ≤30% |
| Sparks Test | No spark-over | No spark-over |
| Conductor Resistance | Standard value+10%/-5% | Standard value+10%/-5% |
| Resistance Scope | 1-10000 ohm/m | 1-10000 ohm/m |
Technical Parameters:
1) maximum temperature resistance of insulating material: 200 ºC
2) maximum service temperature: 200 ºC - 250 ºC
3) insulation resistance: ≥ 5 m Ω
4) compressive strength: 1500V / 5S
5) power deviation: ± 8%
6) withstand voltage: > 5kV,
7) leakage current 0.05ma/m
8) outer diameter: φ 2.0 (3.0mm, 4.0mm can be customized)
9) resistance value: multiple resistance values
10)Reaction capacity: 0.3, 1, 1, 4, 3, 4, 5, 8, 10, 15, 20, 25, 40 ohm / m, select as needed
Application:
It is suitable for keeping car hot seat and steering wheel warm, refrigerator, air conditioner, USB shoe cable heater for heating, electric blanket, towel, foot massage, electric stove, pet pillow, hot clothes, window heating, Pipeline freezing protection, electric weight loss belt, pet incubator, health care equipment. 9. Freezing and thawing equipment.
It is suitable for keeping car hot seat and steering wheel warm, refrigerator, air conditioner, USB shoe cable heater for heating, electric blanket, towel, foot massage, electric stove, pet pillow, hot clothes, window heating, Pipeline freezing protection, electric weight loss belt, pet incubator, health care equipment. 9. Freezing and thawing equipment.
