Basic Info.
Model NO.
Avss
Conductor Material
Copper
Sheath Material
No
Insulation Material
XLPE
Material Shape
Round Wire
Range of Application
Low Voltage Circuits Wiring in Automobiles
Certification
ISO9001, RoHS, Reach
Brand
Bort
Transport Package

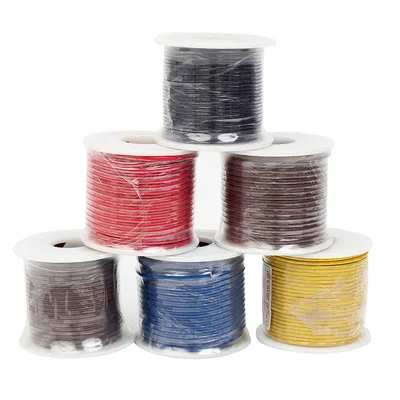

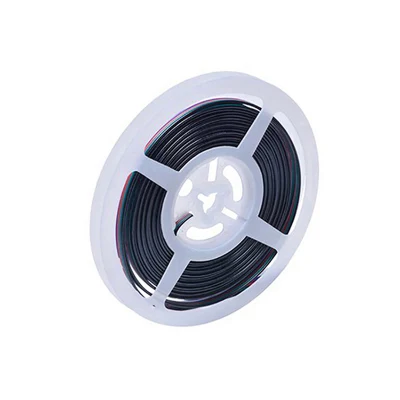

Roll, Customization
Specification
AWG12-30
Trademark
Bort
Origin
China
HS Code
8544492900
Production Capacity
500000km/Per Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description
★Rated temperature:120ºC
★According to JASO D 611

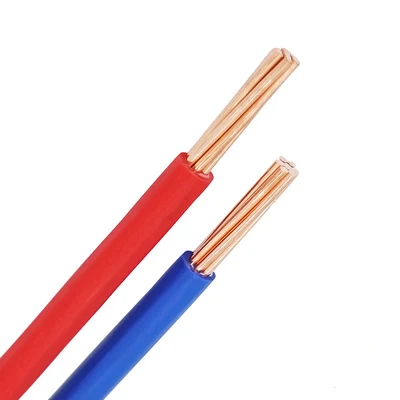

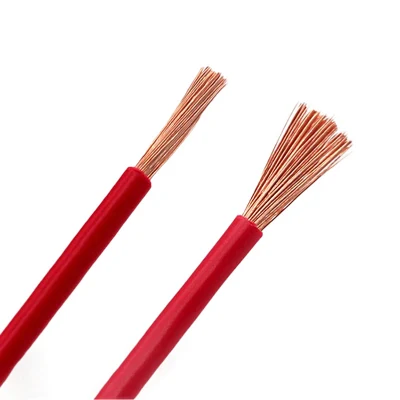

★Stranded, bare copper conductor
★XLPE insulation
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Resistant to oil and abrasion
★low voltage circuits wiring in automobiles
| Conductor | Finished product | Maximum Resistance at 20ºC | ||||
| Cross Sectional Area | NO.of Cond | OD | Insulation Thick. | Outside Thick. | Weight | |
| mm2 | No./mm | mm | mm | mm | kg/km | Ω/mm |
| 0.3 | 7/0.26 | 0.8 | 0.3 | 1.4 | 5.1 | 50.2 |
| 0.5 | 7/0.32 | 1 | 0.3 | 1.6 | 7.25 | 32.7 |
| 0.85 | 19/0.24 | 1.2 | 0.3 | 1.8 | 10.3 | 21.7 |
| 1.25 | 19/0.29 | 1.5 | 0.3 | 2.1 | 10.45 | 14.9 |
| 0.3f | 19/0.16 | 0.8 | 0.3 | 1.4 | 14.66 | 48.8 |
| 0.5f | 19/0.19 | 1 | 0.3 | 1.6 | 24.0 | 34.6 |
| 0.75f | 19/0.23 | 1.2 | 0.3 | 1.8 | 5.18 | 23.6 |
| 1.25f | 19/0.29 | 1.5 | 0.3 | 2.1 | 7.07 | 14.6 |
| 2.0f | 37/0.26 | 1.8 | 0.4 | 2.6 | 9.76 | 9.5 |
| Note: The "F" in the table indicates that the conductor is a soft structure | ||||||
