Basic Info.
Model NO.
AEX
Brand
Bort
Sample
Free Sample Available
Packaging
610m/Roll

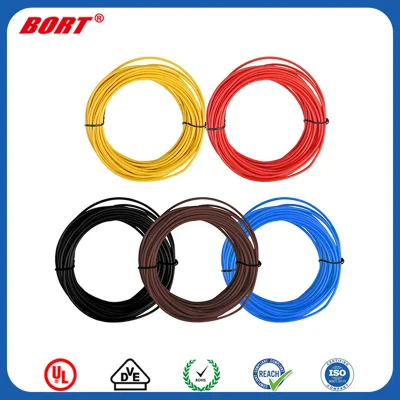

Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
7-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300,000kms
Transport Package

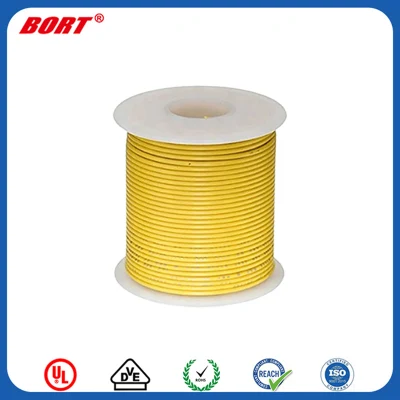

Roll or Spool Packing, Stretch Film Wrapping, Car
Specification
customize
Trademark
Bort
Origin
Zhangzhou
HS Code
8544491900
Production Capacity
300000km/Year
Product Description

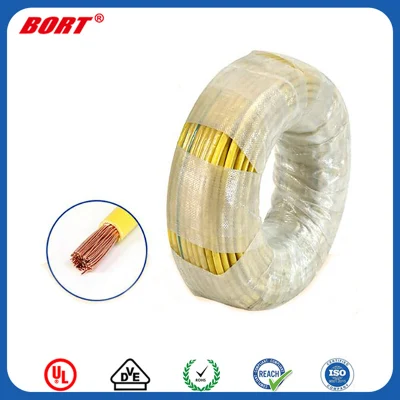

JASO D 608 standard AEX 2mm 3mm 5mm automotive wire electrical cable
PRODUCT DESCRIPTION:
★Rated temperature:120ºC
★According to JASO D 608-92

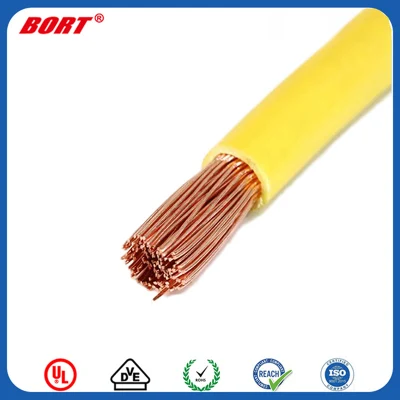

★Stranded,tinned or bare copper conductor 0.5--8mm²
★Cross linked polyethylene(XLPE) insulated
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil,ozone and abrasion
★interal wiring in autmobile where high flexibility
thermo and mechanical strength are required
PRODUCT DESCRIPTION:
★Rated temperature:120ºC
★According to JASO D 608-92
★Stranded,tinned or bare copper conductor 0.5--8mm²
★Cross linked polyethylene(XLPE) insulated
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil,ozone and abrasion
★interal wiring in autmobile where high flexibility
thermo and mechanical strength are required
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Thick. | Weight | |
| mm2 | No./mm | mm | mm | kg/km | Ω/mm |
| 0.5F | 20/0.18 | 0.5 | 2.0 | 8.52 | 38.6 |
| 0.5 | 7/0.32 | 0.5 | 2.0 | 8.93 | 34.6 |
| 0.75F | 30/0.18 | 0.5 | 2.2 | 11.43 | 25.8 |
| 0.85 | 11/0.32 | 0.5 | 2.2 | 12.35 | 22.0 |
| 1.25F | 50/0.18 | 0.6 | 2.7 | 18.14 | 15.5 |
| 1.25 | 16/0.32 | 0.6 | 2.7 | 18.25 | 15.1 |
| 2 | 26/0.32 | 0.6 | 3.1 | 27.06 | 9.3 |
| 3 | 41/0.32 | 0.7 | 3.8 | 41.84 | 5.9 |
| 5 | 65/0.32 | 0.8 | 4.6 | 64.32 | 3.72 |
| 8 | 50/0.45 | 0.8 | 5.3 | 93.07 | 2.45 |
| Note: The "F" in the table indicates that the conductor is a soft structure | |||||
