Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

Jcw-Cst02 Full Auto Customize Wire Harness/Cable Cutting Strip/Stripping & Terminal Crimping/Crimp Machine. We are a factory specializing in custom wire harness and cable processing equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Our Team
  • Company Profile
  • Certifications&Exhibition
  • FAQ
Overview

Basic Info.

Model NO.
JCW-CST02
Certification
CCC, PSE, FDA, RoHS, ISO, CE
Warranty
12 Months
Automatic Grade
Automatic
Model
Jcw-Cst02 Automatic Multi Wire Cut Strip Terminal
Function
Double Side Wire Stripping, Double Side Terminal
Raw Material
PVC, Silicone, Low Halogen, Fiberglass
Cutting Length Accuracy
1mm+0.002 X L
Stripping Lgeth
0.5-10mm
Production Rate
3000 PCS/Hr (L≤100mm)
Power Supply
AC110-220V, 50/60Hz
Cutting Length
45-999mm
Weight
380kg
Wire Range
0.03-2mm2 (4mm2 on Request)
Packaging Details
Wooden Case and According Your Requirements
Supply Ability
200 Piece/Pieces Per Month
Stripping Increment
0.1mm
Peripheral
Cfm, Belt Conveyor
CE-Conformity
Yes
Transport Package
Cartoon
Specification
L800 x W830 x H1530mm
Trademark
JCW
Origin
China
HS Code
8479819000
Production Capacity
200piece/Month

Packaging & Delivery

Package Size
80.00cm * 70.00cm * 150.00cm
Package Gross Weight
358.000kg

Product Description

Product Parameters
Model Number JCW-CST02
Wire Range 0.03-2mm2 (4mm2 on request)
Wire Type PVC, PUR, Rubber, Tefzel, Kapton, etc
Stripping Length 0.5-10mm
Productivity 3000 pcs/hr (L≤100mm)
Function Double side wire stripping, double side terminal crimping
Dimension L800 x W830 x H1530mm
Weight 380kg
Cutting length 40-9999mm
Cutting Tolerance 1mm+0.002 x L
Packaging Details Wooden case/cartons and according your requirements
Port Qingdao/Shanghai/Guangzhou
Product Description

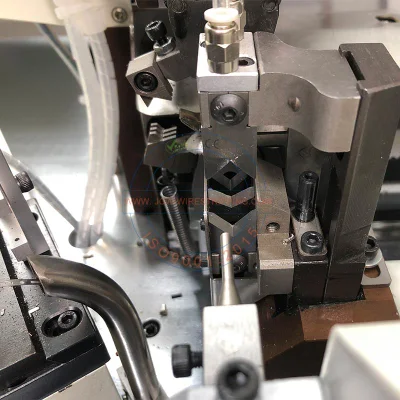

Customizable for Europe mini-style crimp applicator
Japanese / Korean crimp applicator, etc.
Can be updated for processing insulated terminal on reel or loose
An all-around safety cover is addable
Display: English /Chinese [ Other languages on  request ]

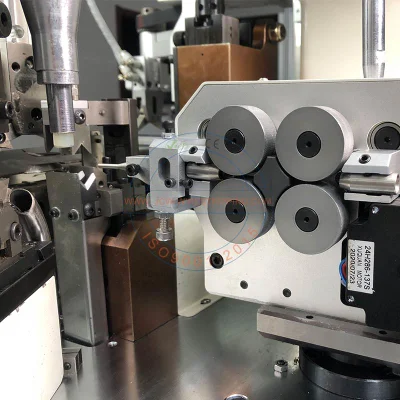

Feeding Device:
Multi-section feeding pipe.
4 feeding rollers.
Precise feeding
Straighten wire.
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

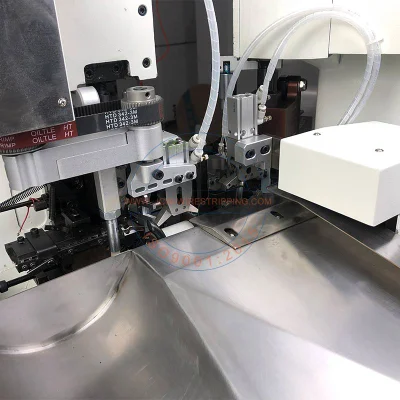

Compact Design:

Shorten the wire conveying distance,ensure high precision,high speed, space-saving design.

Wire Straightener:

Combine wire lack sensor,
Multi-section starighten.
Robust&long service life
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
HMI:
Offer correct input
Menu guide
Simple operation
English/Customizable language



CE Certification
Smart&robust design
Complies with CE standard
DOC and test report
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

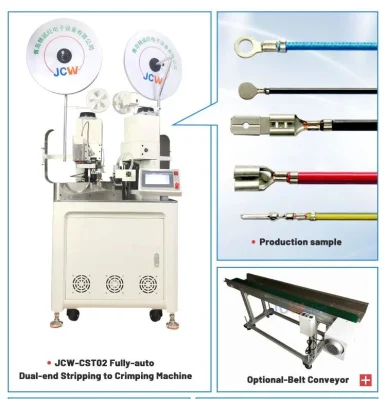

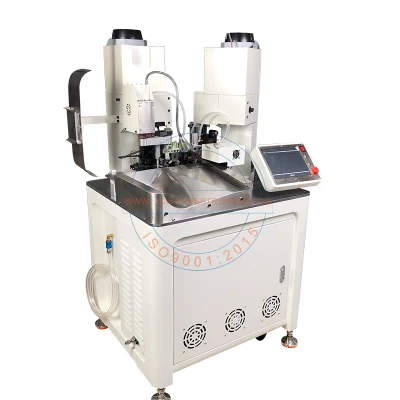

JCW-CST02 Fully Automatic Dual-ends Terminal Crimping MachineEconomical price with precise wire processing
Feature of the machine

The JCW-CST02 is an automatic wire stripping and crimping machine. The machine allows wire cutting, stripping, andcrimping of wires in the cross-section range from 0.1 mm? to 2 sqmm, crimping force is 2 tons ( 20 KN ).

The processingcapacity can be expanded to 4 mm? and 4 tons crimping force. The compact machine design provides economicflexibility and high productivity over 4000 pieces per hour
High quality, high speed, and simple operation

To ensure product quality, JCW integrates high-quality components. Eficient stepper motors, highly rigid transmissionstructure, hiah-speed control svstem, User-friendly interface and 7" touch screen interface offers vou accurate input andclear vision.

The JCW-CST02 wire crimping machine ofers vivid detection functions, wire lack detection, wire knotdetection, stripping detection, crimping detection, air pressure detection, etc. High speed and high volume out put.


Various peripherals and options
-Crimping force monitoring ( CFM )
-4 sqmm wire processing
-4 tons crimping machine
-Wire prefeeder for keeping proper wire tension
-Conveyor belt for stacking finished wire
-Customize HMl, language & logoffer4000 pcs per hour by 100mm of wire length.


Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
  Packing: Plastic/Cartoon/Wooden case/Pallet or Customized
Shipping: Express,Air or Sea
Loading port: Qingdao,Tianjin,Yiwu,Guangzhou and every port in China
Our Team
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine

SOLUTION: We provide you with a complete wire harness processing solution
FAST DELIVERY: We always have stock.After placing the order,delivery will be arranged quickly.
SERVICE:24/7,professional and warm pre-after sale service
Quality assurance:ISO9001:2015:CE

Company Profile
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Stable performance,high cost-effective.
Easy to operate and high product rate.
Save time and effort.
Quality assurance,longer service life.

Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Qingdao JingChengWang Electronic Equipment Co,Ltd is a leading manufacturer of wireharness processing equipment. ISO9000 approved factory. We started making machinessince 1997. In 2009, we established today's company, now we own 2 factories and 5domestic branch offices in main manufacturing centers over all of China.Since JCWelec began, we encourage R&D to upgrade our machines every year. Beingsupported by a team of senior technical experts who collectively have more than 12 yearsof experience in the machinery manufacturing, our machines are stable, precise, highspeed and cost effective.

Quality is our priority. We have skillful & experienced team, advanced equipment and strictquality control system. In addition to that, we also offer complete before- & after-sale trainand service. Thanks to this, we always gain customersrecognition, what buildirustour good reputation.Until today, we supply wide range of cable & wire harness equipment, including wirecutting and stripping machine, terminal crimping machine, fully-auto wire stripping andcrimping machine, fully-auto wire crimping & soldering machine, wire crimp pull tester.tube cutting machine and crimp applicator, etc.

JCWelec have served countless domestic customers in high-speed railway, auto, homeWe export machines toappliance,electric power equipment & new energy industries.dozens of countries in all the world.JCWelec know that demands often vary greatly within an industry. Based on customerrequirements, we develop customized solutions and OEM service for different customersand industries.

Thank you for choosing JCWelec
Certifications&Exhibition



Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine
Jcw-Cst02 Full Auto Customize Both/Double/Dual End/Head Wire Harness/Cable Cut/Cutting Strip/Stripping Connector/Terminal Crimping/Crimp Equipment/Machine




FAQ

Q1: Are you a factory or a trading company?amirtaher
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.

Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.

Q3: Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.

Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples' leading time will be 7-10 days.

Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s

Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.

Q7: What's your warranty time? A: We offers 12 months warranty time since.
