Low Voltage RFID Antenna Litz Wire Induction Coil

Low Voltage RFID Antenna Litz Wire Induction Coil - Visit our factory for high-quality, customizable RFID antenna litz wire induction coils.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
NBL1050
Frequency Characteristics
Power Frequency
Shape of Core
Rod
Components
Self-Bonding Copper Wire
Wire Diameter
0.01-2mm
Transport Package
Carton
Specification
full specifications
Trademark
phoegon
Origin
Qingdao, China
HS Code
85043110
Production Capacity
400K/Month

Product Description

Low Voltage RFID Antenna Litz Wire Induction Coil

Power Transformer

Low Voltage RFID Antenna Litz Wire Induction Coil










Item Name Low Voltage Rfid Antenna Litz Wire Induction Coil
Model No. NBL1050
Coils Type We Supply Air coils
Components self-bonding copper wire
Wire Diameter 0.01-2.0mm
Shape square or round
Storage Temperature -25-85°c
Working Temperature -40-100°c
Storage Humidity 30% to 95%
Test Items Ø Maximized Size
Ø Inductance
Ø DC Resistance
Ø Insulation Resisitance
Ø Hi-POT
Certifications ISO9001:2008, ISO14001:2008, UL, CQC.
MOQ 1000 pcs
OEM acceptable
Sample Time 3-5 working days
Package EPE foam + export carton, or  plastic tray+export carton
Delivery time 7-15 days
Feature (1) Vertical/Horizontal structure,small,lightweight design.
(2) Inductive interference rare.
(3) Small size high power inductors.
(4) Excellent Q frequency characteristice and small distributed capacity contributes to high self-resonant frequency.
(5) High dielectric strength and insulation resistance.
Applications 1.IC card,Radio Frequency tag Electronic Clock,
2.Speaker Toys, ID Card systems,
3.Electro-mechanical displays,
4.Antennas and remote control devices.
5.Other circuits of consideration aganist radiation

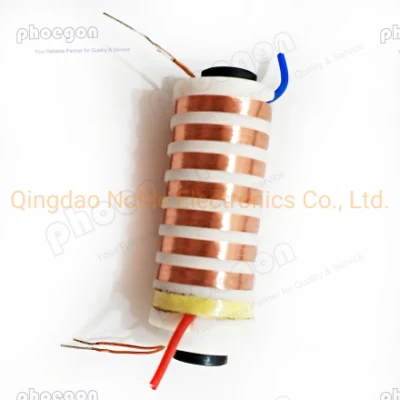

high voltage ignition transformer ignition coils
Low Voltage RFID Antenna Litz Wire Induction Coil

Primary: 2 Turns to be customized
Secondary: 44 Turns to be customized
Windings: in bifilar
Power: 5--10VA to be customized

Advantage:
1. Sound working frequency
2. Balance-unblance ratio fulled customized
3. Lead wire out or SMD type
4. Ratio is variable as per your requirements: 1:4, 1:5, 2:4 5:10 and etc.
5. timely delivery
6. sound packing

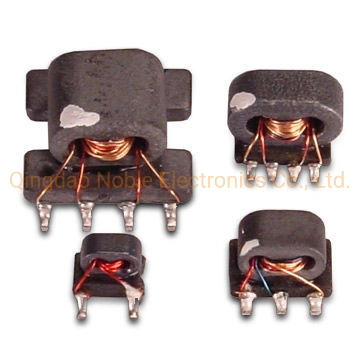

Low Voltage RFID Antenna Litz Wire Induction Coil

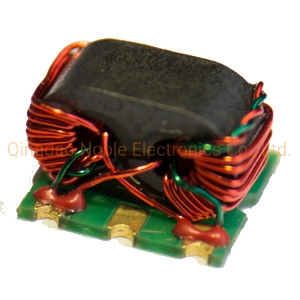

Low Voltage RFID Antenna Litz Wire Induction Coil

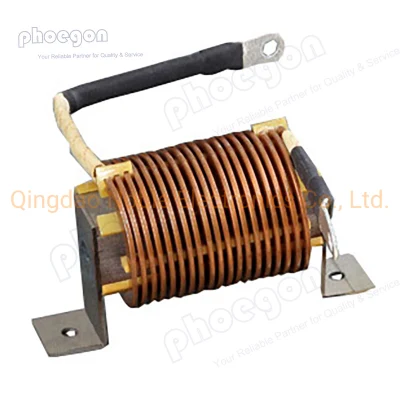

Low Voltage RFID Antenna Litz Wire Induction Coil

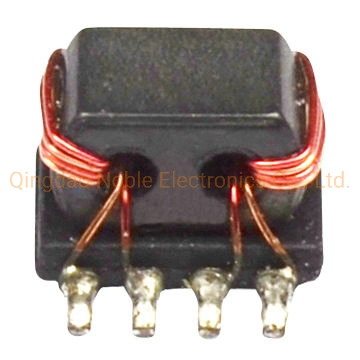

Low Voltage RFID Antenna Litz Wire Induction Coil
Low Voltage RFID Antenna Litz Wire Induction Coil Low Voltage RFID Antenna Litz Wire Induction Coil Low Voltage RFID Antenna Litz Wire Induction Coil
