Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire

Manufactory Direct is a trusted source for BV House Wiring Electrical PE PVC Cable Wire. As a factory, we offer high-quality copper wire products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
BV wire
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PE
Material Shape
Round Wire
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Zoom Link
Sheath Color
Customized
Sample
Free
Delivery Time
About 30 Days
OEM or ODM
Ok
Type of Company
Manufacture
Quality
100% Test Each Box
Min, Order
500m
Several Meters Per Roll
100 Meters (or Other Length Required by Customer)
Transport Package
Drum or Roll
Trademark
ZML
Origin
China
Production Capacity
50000 Per Day

Product Description

Product Description
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire

1. High-purity oxygen-free copper
    Using 99.9% high-purity copper core, the electrical conductivity is stable and the current load capacity is strong.

2. Insulating flame retardant layers
    The material is polyvinyl chloride as the isolation layer, and the cable has low eccentricity to prevent breakdown and avoid fire. At the same time, the material is strictly controlled and the quality is excellent.

3.The outermost insulating layer is made of new flame retardant material, which does not burn away from open fire, has no pungent odor, and is not easy to wear when laying wires

Rated Voltage Nominal cross section(mm²) Conductor type  Upper limit of O.D.(mm²)  Minimum d.c.resistance at 20ºC CU (Ω/KM) Minimum d.c.resistance at 20ºC  AI (Ω/KM) Minimuminsulation resistance at 70ºC MΩ·km  Recommended ampacity  Cu(oΩ/km) Recommended ampacity  Ai (oΩ/km)
 450/750v  1.5  1  3.2  12.1   0.011 25
 450/750v 1.5  2  3.3  12.1    0.010 25
 450/750v 2.5  1  3.9  7.41  12.1 0.010 34 26
 450/750v 2.5  2  4. 0 7.41    0.009 34
 450/750v 4.0  1  4.4  4.61  7.41 0.0085 44 36
 450/750v 4.0  2  4.6  4.61    0.0077 44
 450/750v 6.0  1  5.0  3.08  4.61 0.0070 58 45
 450/750v 6.0  2  5.2  3.08    0.0065 58
450/750v 10 2 6. 1.83 3.08 0.0065 79 62
450/750v 16 2 7.8 1.15 1.91 0.000 111 84
450/750v 25 2 9.7 0.727 1.2 0.0050 146 113
450/750v 35 2 10.9 0.524 0.868 0.0043 180 136
450/750v 50 2 12.8 0.387 0.641 0.0043 282 169
450/750v 70 2 14.6 0.268 0.443 0.0035 281 214
450/750v 95 2 17.1 0.193 0.320 0.0035 344 273
450/750v 120 2 18.8 0.153 0.253 0.0032 397 318
450/750v 150 2 20.9 0.124 0.206 0.0032 456 370
450/750v 185 2 23.3 0.0991 0.164 0.0032 519 422
450/750v 240 2 26.6 0.0754 0.125 0.0032 592 507
450/750v 300 2 29.6 0.0301 0.100 0.0030 685 592
450/750v 400 2 33.2 0.0470 0.0778 0.0028 799 702
Detailed Photos

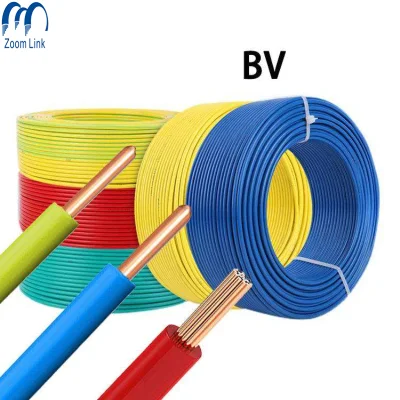

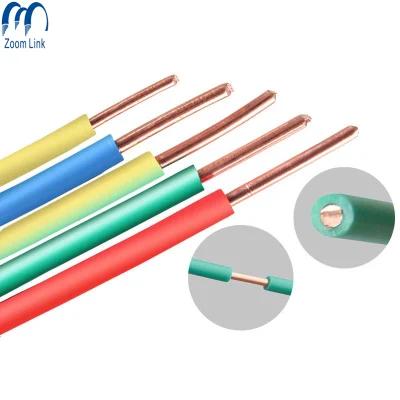

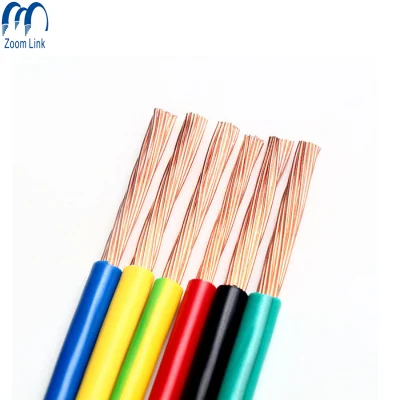

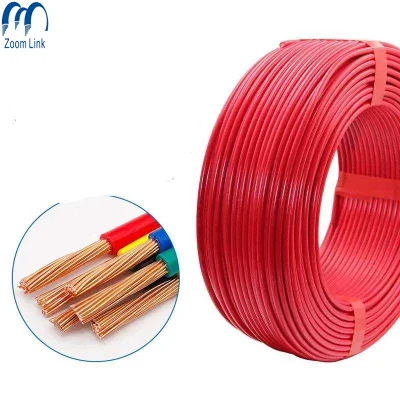

Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire

Packaging & Shipping

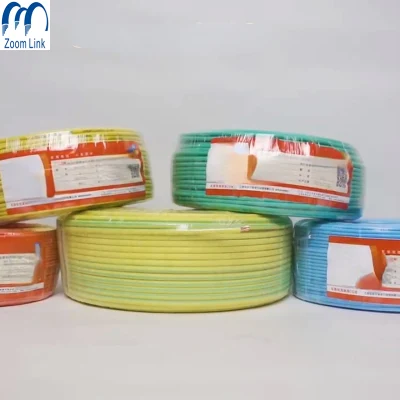

Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire

Company Profile



Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire
Manufactory Direct Copper Wire BV House Wiring Electrical PE PVC Cable Wire

FAQ

FAQ

1.Are you a manufacturer or trading company?
We are a professional manufacturer.We can control your order from the first beginning to the last.
Welcome to visit us.We'll pick you up in Zhengzhou
2. How can I get a sample to test your quality?
The samples are free for you.New clients are expected to pay for the courier cost.
3.What's your Minimum Order Quantity?
Normally 1000m.How ever the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4.Can I get a discount?
It depends on your quantity,We can make a discount and afford the freight.
Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name we even custom the quality card to promote your company.
