Basic Info.
Range of Application
Equipment
Certification
ISO9001, CE, CCC, RoHS, VDE, CSA
Brand
Fengda
Transport Package
Standard Export Packing
Specification
International General Specifications
Trademark
Fengda
Origin
China, Tianjin
HS Code
8544492100
Production Capacity
5000000km/Year
Product Description
Combination of production and trade
--More professional service
---More favourable price
----More consistent quality
-----And quicker delivery.

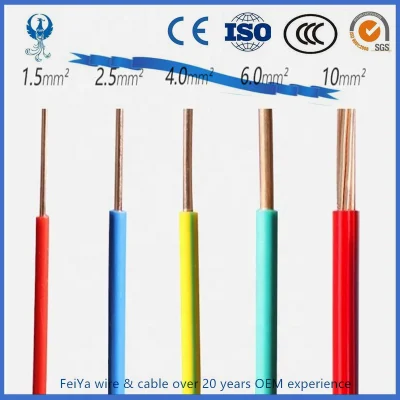

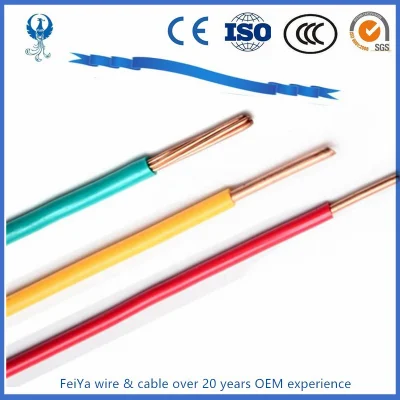

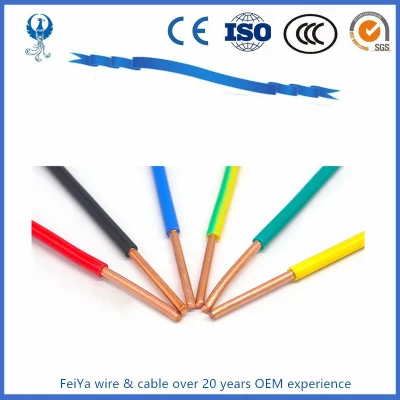

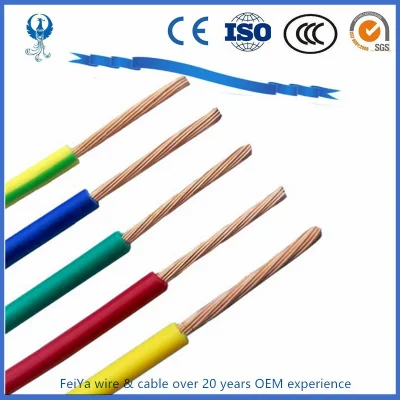

| Product Name | multiple strands copper conductor PVC insulated wire |
| Material | Copper+PVC |
| Colour | red/yellow/blue/green/yellow green |
| Adaptable Voltage (v) | 450/750 |
| Specification | 2.5mm2--70mm2 |
| MOQ | 100m |
1. Product use The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
2.operating characteristic A)U0/U is 450/750V, 300/500V and 300/300V B) The long-term allowable working temperature of the cable core shall not exceed 70ºC Bv-90 should not exceed 90ºC, short-term working temperature can be raised to 105ºC The cable laying temperature shall not be lower than 0ºC C) Allowable bending radius of cable: If the cable outer diameter (D) is less than 25mm, it should not be less than 4D If the cable diameter (D) is 25mm and above, it shall not be less than 6D
3.Product structure, size and reference data
450/750V Copper conductor PVC insulated cable(BVR)
| Nominal cross section of conductor mm2 | The lest NO of single line in stranded conductor | Insulation Thickness mm | Upper limit of average outside diametermm | the max conductor DC resistance at 20ºC Ω/km | the max conductor DC resistance at 20ºC MΩ·km | |
| Copper core | Tin plated copper | |||||
| 2.5 | 19 | 0.8 | 4.1 | 7.41 | 7.56 | 0.011 |
| 4 | 19 | 0.8 | 4.8 | 4.61 | 4.70 | 0.009 |
| 6 | 19 | 0.8 | 5.3 | 3.08 | 3.11 | 0.0084 |
| 10 | 49 | 1.0 | 6.8 | 1.83 | 1.84 | 0.0072 |
| 16 | 49 | 1.0 | 8.1 | 1.51 | 1.16 | 0.0062 |
| 25 | 98 | 1.2 | 10.2 | 0.727 | 0.734 | 0.0058 |
| 35 | 133 | 1.2 | 11.7 | 0.524 | 0.529 | 0.0052 |
| 50 | 133 | 1.4 | 13.9 | 0.387 | 0.391 | 0.0051 |
| 70 | 189 | 1.4 | 16.0 | 0.268 | 0.270 | 0.0045 |
ABOUT OUR FACTORY
Tianjin Feiya wire & Cable CO., LTD. is founded in 1998, located in Tianjin, china.
The company covers an area of 50 thousand square meters, registered fund of
110 million USD has more than 500 staffs, and more than 300 Agents and
distributors. We are a professional manufacture in China.
From established, we insist Technical and Concept innovation, Strengthen inner
management, and keep pace with time. We have passed
ISO9001:2000 and
ISO140001:2004. All products conform to
CE, GB, IEC, BS, ASTM, VDE JB and
UL standards. Besides, we have the ability to design and produce various wires and
cables, and customize them for you according to the special requirements of customers
(providing OEM & ODM services).
Over the past decades, we have become one of the main suppliers of China national
power grid, China National Petroleum Gas Group and China Railway Construction
Group. The products have been sold to many countries and regions in the world, such
as USA, New Zealand, Russia, Algeria, Bahrain,Bangladesh,Brazil, Chile, Costa Rica
and Cyprus, Indonesia, Iran, India, Jordan,Malaysia, Oman,Pakistan, Philippines,
Singapore, Sri Lanka, Tanzania, Yemen,Vietnam, Mongolia.
Our Principles:
1) Quality first, customer first, safety first
2) Better service, faster delivery
3) Equal and mutual benefit
4) Honesty and professional
Our service:
1. Swift and professional response
2. Patient and trusty
3. Severe quality control system
4. On-time delivery
Our Mission:
Supply quality products with competitive price & excellent service .
OUR CERTIFICATION
OUR EXHIBITION
OUR CERTIFICATION
OUR EXHIBITION
Packing
FAQ
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
Q: How to ship the order? Is it Safe?
A: Heavy goods are transported by container, sea or air to the designated port. For small packages, recommend sending by express, such as DHL, FEDEX, UPS, TNT, EMS, ect which are door to door service.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: What is your working time?
A: From 8AM to 8PM Monday noon to Sunday noon. Please feel free to contact us. Our sales staff is on a rotation basis. The customer service is available 24 hours a day, checking customer emails, responding to customer questions and messages, and providing the most convenient service for each customer.
Contact us
