Multicore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire Cable

Get top-quality Multicore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire Cable direct from the factory. Order now for reliable, high-performance industrial communication and control signal wiring.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Application
  • Construction
  • Installation Instructions
  • Standards
  • Electrical Performance
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
LiYcY 7x0.5
Material Shape
Round Wire
Range of Application
Instrumentation Control Automation
Certification
ISO9001, CE, CPR
Brand
Aipu
Screen
Tc Wire
Transport Package
Pallet
Specification
7x0.5mm2
Trademark
AIPU
Origin
Shanghai, China
HS Code
8544491100
Production Capacity
1, 000, 000, 000 Meters/Year

Product Description

Control & Signal Cables
LiYcY Cable  PVC

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units, which requires protection from electromagnetic interference (EMI) and electromagnetic radiation (EMR).

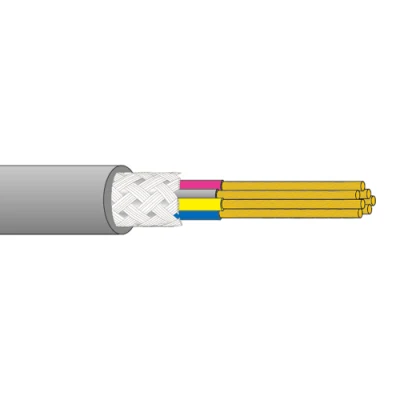

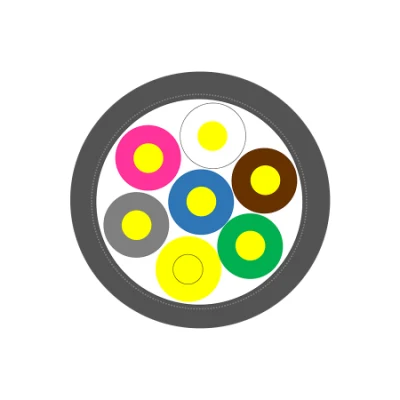

Construction

1. Conductor: Class 5 Oxygen Free Copper
2. Insulation: PVC
3. Identification: Colored
4. Screen: Tinned Copper Wire Braided
5. Sheath: PVC

Installation Instructions

Installation Temperature: Above 0ºC

Operating Temperature: -15ºC ~ 70ºC


Standards

VDE 0812
DIN 1704
VDE 0207
RoHS Directives
IEC60332-1

Electrical Performance



Section Area Rated Voltage Test Voltage Min. Insulation Resistance
at 20
ºC (MΩ/km)
0.14~0.34mm2 250/250V 1.2kV 200
0.5~0.75mm2 300V 2000V 200
1.0~1.5mm2 300/500V 3000V 200

0.14mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x0.14 12/0.12 0.35 0.7 4.4 148
LiYcY 3x0.14 12/0.12 0.35 0.7 4.7 148
LiYcY 4x0.14 12/0.12 0.35 0.7 4.9 148
LiYcY 5x0.14 12/0.12 0.35 0.7 5.3 148
LiYcY 7x0.14 12/0.12 0.35 0.7 5.6 148
LiYcY 8x0.14 12/0.12 0.35 0.8 6.2 148
LiYcY 10x0.14 12/0.12 0.35 0.8 7 148
LiYcY 12x0.14 12/0.12 0.35 0.8 7.3 148
LiYcY 14x0.14 12/0.12 0.35 0.8 7.5 148

0.25mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x0.25 14/0.15 0.4 0.7 4.8 79.9
LiYcY 3x0.25 14/0.15 0.4 0.7 5.1 79.9
LiYcY 4x0.25 14/0.15 0.4 0.7 5.4 79.9
LiYcY 5x0.25 14/0.15 0.4 0.7 5.8 79.9
LiYcY 7x0.25 14/0.15 0.4 0.8 6.4 79.9
LiYcY 8x0.25 14/0.15 0.4 0.8 6.8 79.9
LiYcY 10x0.25 14/0.15 0.4 0.8 7.8 79.9
LiYcY 12x0.25 14/0.15 0.4 0.8 8.1 79.9
LiYcY 14x0.25 14/0.15 0.4 0.8 8.2 79.9

0.34mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x0.34 20/0.15 0.4 0.7 5.2 57
LiYcY 3x0.34 20/0.15 0.4 0.7 5.5 57
LiYcY 4x0.34 20/0.15 0.4 0.7 5.9 57
LiYcY 5x0.34 20/0.15 0.4 0.7 6.3 57
LiYcY 7x0.34 20/0.15 0.4 0.7 6.8 57
LiYcY 8x0.34 20/0.15 0.4 0.8 7.5 57
LiYcY 10x0.34 20/0.15 0.4 0.8 8.6 57
LiYcY 12x0.34 20/0.15 0.4 0.8 9.1 57
LiYcY 14x0.34 20/0.15 0.4 0.8 9.5 57

0.5mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x0.5 16/0.20 0.45 0.7 5.6 39
LiYcY 3x0.5 16/0.20 0.45 0.7 6 39
LiYcY 4x0.5 16/0.20 0.45 0.7 6.4 39
LiYcY 5x0.5 16/0.20 0.45 0.7 6.9 39
LiYcY 7x0.5 16/0.20 0.45 0.8 7.6 39
LiYcY 8x0.5 16/0.20 0.45 0.8 8.2 39
LiYcY 10x0.5 16/0.20 0.45 0.8 9.8 39
LiYcY 12x0.5 16/0.20 0.45 0.8 10.2 39
LiYcY 14x0.5 16/0.20 0.45 0.9 10.6 39

0.75mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x0.75 24/0.20 0.5 0.8 6.4 26
LiYcY 3x0.75 24/0.20 0.5 0.8 6.8 26
LiYcY 4x0.75 24/0.20 0.5 0.8 7.3 26
LiYcY 5x0.75 24/0.20 0.5 0.8 7.9 26
LiYcY 7x0.75 24/0.20 0.5 0.8 8.5 26
LiYcY 8x0.75 24/0.20 0.5 0.9 9.4 26
LiYcY 10x0.75 24/0.20 0.5 0.9 11 26
LiYcY 12x0.75 24/0.20 0.5 0.9 11.4 26
LiYcY 14x0.75 24/0.20 0.5 1 12.1 26

1.0mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x1.0 32/0.20 0.6 0.8 7.2 19.5
LiYcY 3x1.0 32/0.20 0.6 0.8 7.7 19.5
LiYcY 4x1.0 32/0.20 0.6 0.8 8.3 19.5
LiYcY 5x1.0 32/0.20 0.6 0.8 9.2 19.5
LiYcY 7x1.0 32/0.20 0.6 0.9 10.3 19.5

1.5mm2
No. of Cores Conductor
Construction (mm)
Insulation
Thickness (mm)
Sheath
Thickness (mm)
Overall
Diameter (mm)
Max. DCR
at 20
ºC (Ω/km)
LiYcY 2x1.5 30/0.25 0.6 0.8 7.8 13.3
LiYcY 3x1.5 30/0.25 0.6 0.8 8.4 13.3
LiYcY 4x1.5 30/0.25 0.6 0.8 9.2 13.3
LiYcY 5x1.5 30/0.25 0.6 0.9 10.2 13.3
LiYcY 7x1.5 30/0.25 0.6 1 11 13.3

Company Profile

Multicore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableABOUT US:
Shanghai Aipu Waton Electronic Industries Co.,Ltd. is a high-tech enterprise, who provides full solutions for Extra Low Voltage Copper Wires and Cables (Belden Equivalent Cable), Instrumentation Cable, Industrial Control Cable, Optic Fiber Cable, Structured Cabling System and Video Surveillance System. Products include but not limited to Cat5e Cables, Cat6 Cables, Cat6a Cables, Cat3 Cables, Multi-pair LZSH cables, Elevator cable, FTTH Bow-type, Single mode and multimode Fiber Optic Cable, Patch Panel, Patch Cord, Module or Keystone Jack, Face Plate, Cable Cabinets.


Shanghai Aipu Waton Electronic Technology (Group) Co.,Ltd., was founded in 1992. Through years of development, Aipu Waton has become a comprehensive high-tech enterprise integrated with manufacture, research & development, sales and service, which achieves management capital over 2000 Million RMB, factory area 80000m2, employees about 2000(including R&D staff more than 100). Our market and service network cover almost all large and medium-sized cities in China.

With our reliable quality and perfect service, we have been awarded well-known reputation, like "Top 10 National Brands in China Security Industry", "Top 10 Enterprises in China Security Industry", "Shanghai Famous Brand" and "Shanghai Enterprise Star" etc. We are sole or appointed supplier for a number of national key projects, such as Beijing National Stadiums, China Safety City Project, Shanghai World Financial Center, Daya Bay Nuclear Power Station etc.

Being the leading enterprise in the industry, awarded as the vice-director unit of China Security and Protection Industry Association, Aipu Waton is committed to creating international famous brand as our responsibility. We keep expanding the production capability and renovating technology and improving service, management and company culture so as to provide high performance-price ratio products to all of our customers.

Aipu Waton has maintained excellent and long-term relationship with thousands of customers and makes full efforts to achieve mutual development with them.

Aipu Waton, your reliable partner.
Multicore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire CableMulticore Liycy Cable 7X0.5 Tc Braid Shielded Data Communication Flexible PVC/LSZH 7 Core Screen Industrial Control Signal Copper Wire Cable

FAQ



1.Q: What' s your MOQ?
A: For Aipu brand
cables in stock MOQ is 305m/1000ft, if for customized items, the MOQ are 100ctns.

2. Q: How to get a sample?
A: Choose the style you want from our website, provide the address for us to quote the express fee. If the freight fee could be accepted, after received the payment, we will send out within 7 working days for the stock product. If for the customized product, it will take about 5-15 days. It would be glad and more convenient for both of us if you have an Express collect account.


3. Q: Are you a manufacturer or a trading company?
A: We are a
structured cabling and ELV wire & cable manufacturer with 30 years production experience.


4. Q: Can you accept customize or design for us?
A: Yes, all of our products could export as our own brand or customize as customer requirement.


5. Q: Is it possible to get a free sample?
A: Yes, the small samples are free, and shipping cost have to be paid by your esteemed company.


6. Q: If I want to purchase, how to pay?
A: Usually, we do T/T in 30% deposit before production, 70% balance against copy of B/L, or LC. Other payment terms are negotiable depending on customer's request.

7. Q: What is your warranty period?

A: We provide 25 years warranty for the cabling products.
