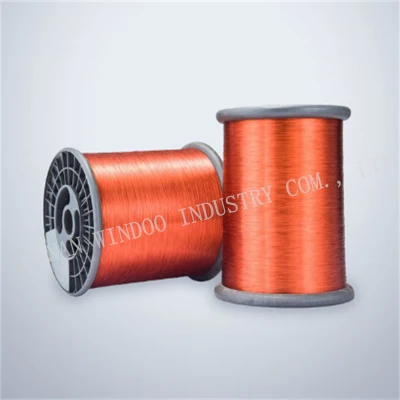

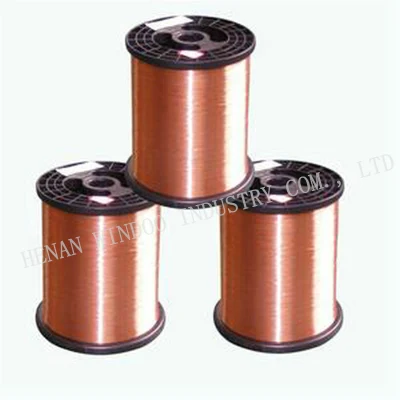

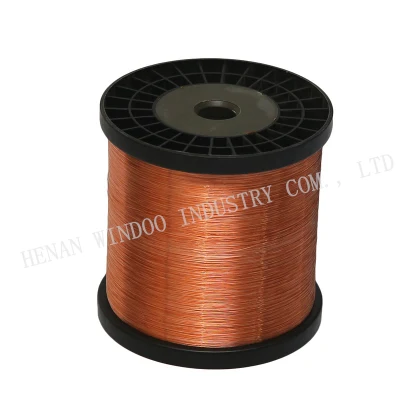

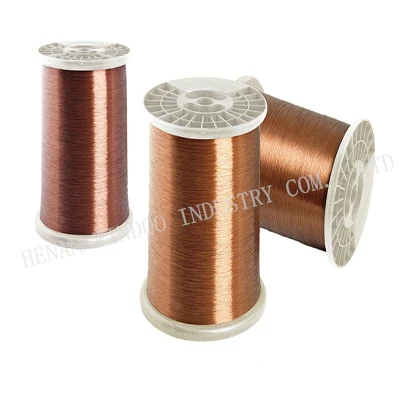

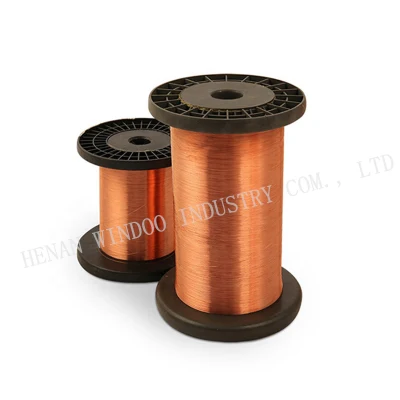

Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding

Get high-quality Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding direct from our factory. Perfect for all your winding needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
QZY
Shape
Round Wire
Conductor Material
Copper Wire
Transport Package
Pallet
Specification
0.01-3.00
Trademark
windoo
Origin
China
HS Code
85441100
Production Capacity
2500t/Year

Packaging & Delivery

Package Size
22.00cm * 22.00cm * 30.00cm
Package Gross Weight
25.000kg

Product Description

Enameled round copper wire is the most common magnet wire, because the insulation is different: 1 acetal enameled wire, 2 polyester enameled wire, 3 Polyurethane enameled wire, 4 Modified polyester enameled wire, 5 Polyesterimide enameled wire, 6 Polyesterimide/polyamideimide enameled wire, 7 Polyimide enameled wire Choose different insulation according to different uses.

Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding
1,Conductor Material:

Copper

We use copper from peru to manufacture oxygen-free copper. Only high-quality raw materials can ensure the performance of copper winding wires. The copper rod manufacturing equipment of the South Line helps us to produce efficiently. Coupled with China's perfect industrial chain, raw materials are continuously shipped to the factory.


2,Conductor Shape:

Round

Rectangle

Square

The excellent ductility of copper determines that it can be manufactured into conductors of various shapes, including round, rectangular, square, hollow or special-shaped, and more conductor shapes will be created in the future.



3,Insulation Material:

Enamel: QQ, QZ, QA, QZY, QXY, QY

Paper: Kraft paper, Miki paper, 3M paper, Cinds paper, Denison paper, Munksjo paper

Aramid Paper: Nomex paper

Film: PI film, PE film

Glass Fiber: Alkali-free and wax-free glass fiber

Mica: Polyester film reinforced mica tape, Polyimide film reinforced mica tape



4,Specifications

Round: 0.01mm-3.0mm

Rectangle: 8mm²--100mm²

Square:9mm²--49mm²



5,Enamel Thickness:

Grade 1

Grade 2

Grade 3



6,Thermal Class:

Class B/130

Class F/155

Class H/180

Class C/200

Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding

7,Technology Standard:

Chinese standard:GB6109-2008

International Electrotechnical Standards:IEC60317-2005

American standard:NEMA MW-1000

Japanese standard:JIS3202-1994

One of the standards can be used as the basis for production and acceptance, and IEC60317-2005 is selected for most orders because of its wide acceptance.


8,Packing:

Plastic spool, wooden spoo
PT-4, PT-10, PT-30, PT-60, PT-90, PT-200, PT-270
Because of the variety and specifications of copper winding wire, customers have various packaging requirements, please tell your requirements, and we can customize the wire wheel for you.



9,Certificate:

SGS

ISO9001

ROHS

In the past few years, we have updated and passed SGS certification, ROSH environmental certification, and ISO quality management system certification.



10,Applications:

Motor

Dynamo

Car electrical appliances

Power transformer

Hydrogenerator

Steam turbine
Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding

Paper Covered Enameled Copper Wire 2.1mm Magnet Litz Wire for Winding
