14/2 12/2 12-2 14-2 PVC Electric Copper Wire Roll with Ground Specifications House Electrical Wire cUL Nmd90 Wire 100m 150m

14/2 12/2 12-2 14-2 PVC Electric Copper Wire Roll with Ground. We are a factory with cUL Nmd90 Wire 100m 150m. Get high-quality house electrical wire from us.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
nmd90 wire
Material Shape
Flat Wire
Range of Application
Indoor, Construction, Building
Certification
ISO9001, RoHS, cUL Certificate
Brand
Rneda
Voltage
300V
Standard.
cUL719
Product Name
Nmd90
Conductor
Copper
Insulation
PVC
Sheath
PVC
Color
Yellow, White
Size
14/2-6/2
Temperature Range
-25°c-90°c
Market
Canada
Transport Package
Soft Packing, or as Your Request
Specification
14-2 14-3 12-2 12-3 10-3 10-2 awg
Trademark
Hebei Huatong Cables
Origin
China. Hebei. Tangshan
HS Code
8544492100
Production Capacity
5000km Per Month

Product Description

            14/2 12/2 12-2 14-2 nmd90 w/g Electric coper wire and cable 15ft 25ft 50ft 100ft 250ft 100' 250' roll with Ground

Applications:

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C  for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be  properly stored above 0°C for 24 hours prior to installation.  The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.
Codes / Standards
NMD90 cables meet or exceed the  following requirements:

CONSTRUCTION
Canada standard C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1

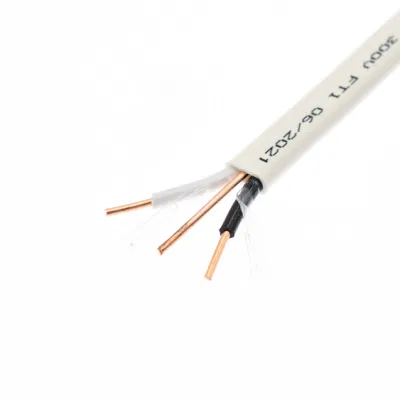

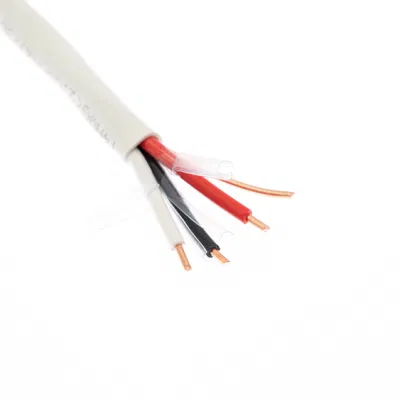

NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is
manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a
heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors  with a PVC jacket for the overall construction.

Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick  identification in the Table below

14/2 12/2 12-2 14-2 PVC Electric Copper Wire Roll with Ground Specifications House Electrical Wire cUL Nmd90 Wire 100m 150m

JACKET COLOUR CODE  - Typical Application Guide
•WHITE - General Residential Wiring
•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)
•ORANGE - No. 10 AWG General Residential Wiring
•YELLOW - No. 12 AWG General Residential Wiring
•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter Applications

CABLE PRINTING
12 AWG 2 CDRS BLACK/WHITE NMD90 NYLON 300 VOLTS FT1
NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external
lubricants, resulting in reduced labour and materials costs.
PVC / NYLON INSULATION
PVC JACKET
GROUND CONDUCTOR COPPER CONDUCTOR PVC / NYLON INSULATION
PVC JACKET

Specification:
Size Number of Conductors Bonding Wire Size  (Copper) Insulation Thickness Nylon Thicknes  Jacket Thickness Approximate Overall Dimensions Approximate Net Cable Weight Ampacity 30°C Ambient
 AWG   AWG mm mm mm mm kg/km A
14 2 14 0.76 0.1 0.76 4.9 x 9.9 99 15
12 2 14 0.76 0.1 0.76 5.3 x 10.7 127 20
10 2 12 0.76 0.1 0.76 5.9 x 12.2 181 30
            (diameter)
14 3 14 0.76 0.1 0.76 8.8 126 15
12 3 14 0.76 0.1 0.76 9.7 166 20
10 3 12 0.76 0.1 0.76 10.9 239 30
8 3 10 0.89 0.12 1.14 14.1 391 45
6 3 8 1.14 0.15 1.14 17.2 601 65
4 3 8 1.14 0.15 1.52 20.3 876 85
3 3 6 1.14 0.15 2.03 22.8 1136 105
2 3 6 1.14 0.15 2.03 24.4 1355 120

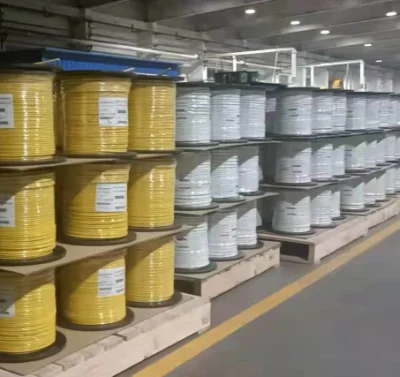

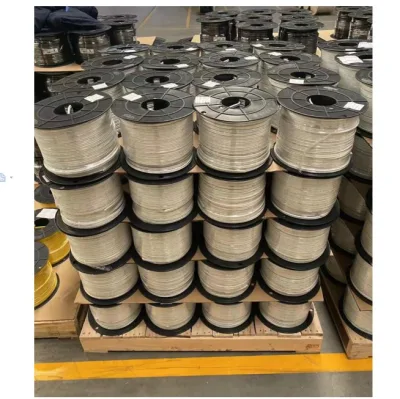

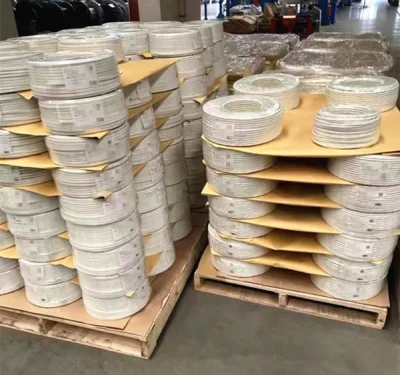

NMD90 Packing picture
14/2 12/2 12-2 14-2 PVC Electric Copper Wire Roll with Ground Specifications House Electrical Wire cUL Nmd90 Wire 100m 150m14/2 12/2 12-2 14-2 PVC Electric Copper Wire Roll with Ground Specifications House Electrical Wire cUL Nmd90 Wire 100m 150m

Other cables we can offer in the North American market:

1. Service entrance cable
2. SEU/SER/SE
3. XHHW/RHW/RHH
4. MV 90/105 URD
5. THW/THHN/THWN
6. MC/AC/AC90/TECK series cables
7. Portable power cable( type SOOW, G, G-GC, SHD-GC)
8. welding cable
9. photo voltaic(PV) wire
10. diesel locomotive cable
11. power and control tray cable
12. bus drop cable
13. DG cable
14. shipboard cable
15. telecommunication cables
16. AC cables
17. AWM cables
