- Overview
- Product Description
Basic Info.
Model NO.
BV/BVR-009
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, CCC, RoHS
Brand
Dayuan
Copper Material
Oxygen-Free Copper (99.9% Purity)
Color
Black, Red, Blue, Yellow, Green, White
Standards
IEC 60227, BS 6004, VDE0281, GB/T 5023, Jb/T8734
Voltage
300/500V,450/750V
Solid or Flexible
Both Ok
Company Nature
Manufacturer and Trading Company
Conductor
Annealed Copper Wires, Solid or Stranded
Item Name
Electrical Wire PVC Insulation BV/Bvr Cable
Features
Flame Retardance, Fire Resistance
Max.Operating Temperature
70,90,105 Degree
Transport Package
Sample Roll, Plastic Drum, Ploywood Drum, etc
Specification
1.5mm2 2.5mm2 4mm2 6mm2 10mm2
Trademark
Luoyang Dayuan
Origin
Luoyang, China
HS Code
85444929
Production Capacity
100000 M Per Day
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 100.00cm
Package Gross Weight
1000.000kg
Product Description
Product Description

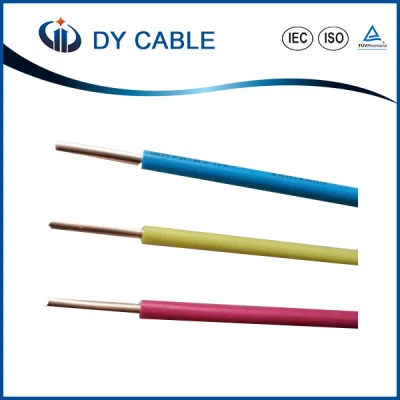

PVC Insulated BV/BVR House Wiring Electrical Cable
Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.| Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR | |
| Voltage Rate | 300/500V, 450/750V | |
| Range of Nominal cross section: | 0.75 mm2 ~ 630 mm2 | |
| Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | |
| Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 | |
| Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request | |
| Max. Operating Temperature | 70°C, can be 90°C,105°C as per requirement | |
| Packing | 100 meter/roll or as per requirement | |
| Production Capacity | 100 kilometer/ day | |
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | |
| Delivery time | 10~15 working days | |
| Remark | The cable can be of flame retardance, fire resistance and other property | |
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available

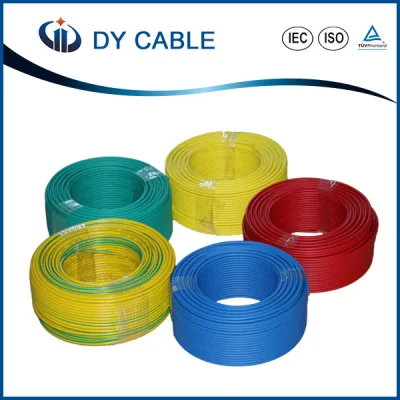

11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of bv/bvr cable
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105 PVC Insulation |
Kindly note that we can make it as your requirement
BV Cable data 1:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km | ||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.7 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 5000.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
Company Information

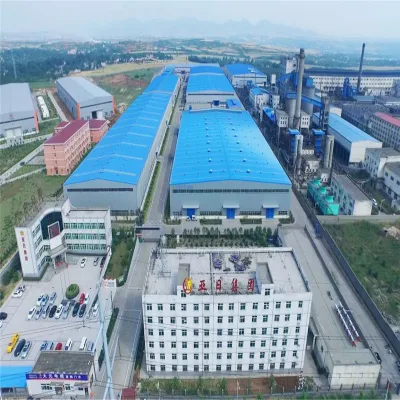

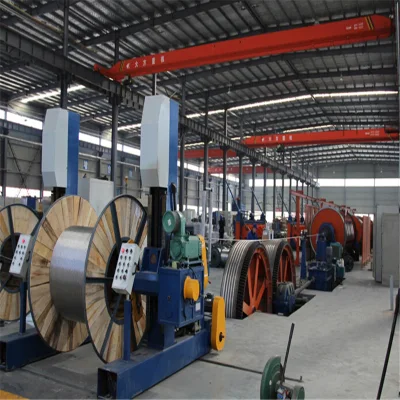

BV cable factory and worshop corner
solar cable have one big workshop about 10,000m2, our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
Packaging & Shipping
BV cable packing, we can also make it as your need for that we have two professional wooden engineer
Inspection machine
BV cable six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
