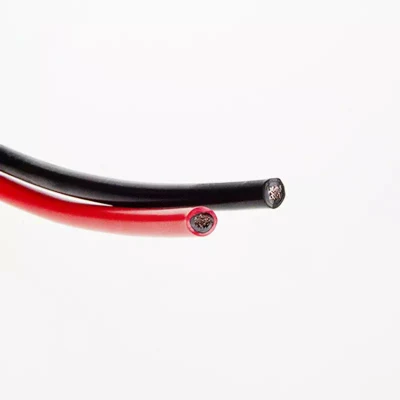

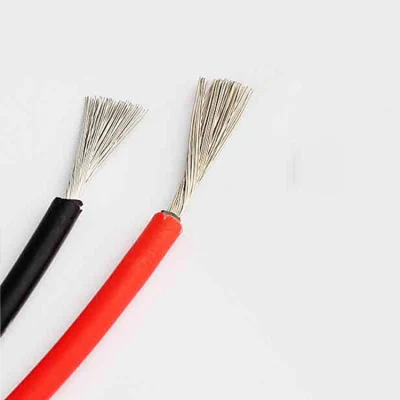

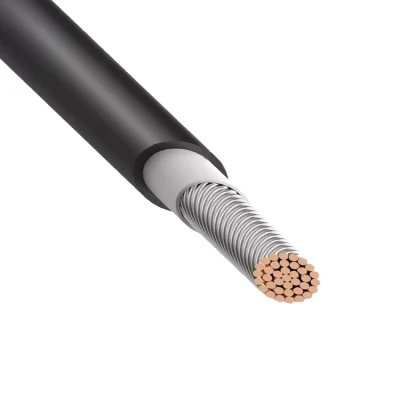

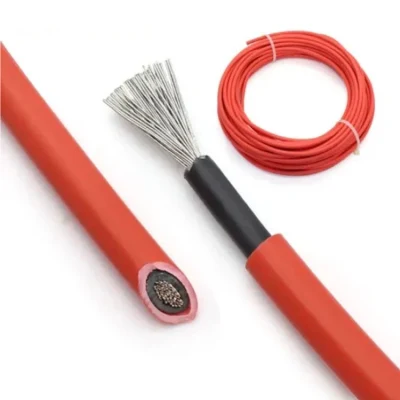

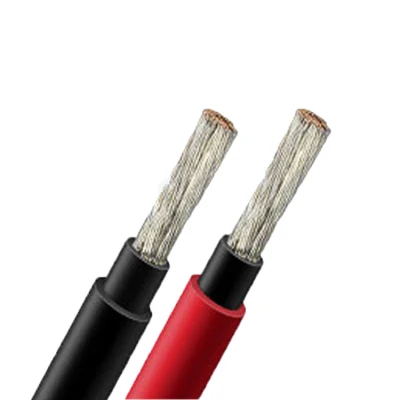

TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel

Introducing our TUV Approved Red Black Battery DC PV Solar Power Cable Wire. We are a factory specializing in solar panel accessories. Shop now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
solar cable
Certification
CE
Wire Core Material
Tinned Wire
Type
Insulated
Conductor Material
Copper
Range of Application
Lsoh
Insulation Material
Crosslinking
Rated Voltage
0.6/1kv
Number of Cores
1
Insulation
PVC
Packing
Roll
Conductor
Copper
MOQ
1000 Meters
Length
Lengths Customize
Product Name
Solar Cable
Rated Temperature
70′c
Transport Package
Cartons, Wooden Wheels, Soft
Trademark
Chunbin
Origin
Luoyang, Henan
Production Capacity
30, 000m/Week

Product Description

Products Description
Conductor
Tinned annealed copper wire
Insulation
Low Smoke Halogen Free Material
Application
Photovoltaic Power
Rated Voltage
0.6-1KV
Number of Cores
One Core
MOQ
1000 Meters

TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel

1. Strong bending resistance, strict control of finished product quality, with strong flexibility. 2. It has the characteristics of ultraviolet resistance, flame retardant, aging resistance, wear resistance, etc., and the service life is more than 25 years. 3. High strength, corrosion resistance, with strong practicability.

Parameter
Cross section (n×mm^2) Conductor (mm) Outer (mm) Current-carrying capacity [A] at 60ºC Conductor resistance kΩ/km at 20ºC Cable Code
1×1.5 1.4 4.2 30 13.7 PV302515
1×2.5 1.8 5 42 8.21 PV502525
1×4.0 2.2 5.2 55 5.09 PV562940
1×6.0 2.8 5.8 70 3.39 PV842960
1×10.0 4.0  7.5 98 1.95 PV142301
1×16.0 5.0  8.9 132 1.24 PV228301
1×25.0 6.2 10.9 176 0.795 PV361302
1×35.0 7.3 12.8 218 0.565 PV525303
1×50.0 8.8 14.3 280 0.393 PV720305
1×70.0 11.0  16.5 350 0.277 PV988307
1×95.0 12.3 18.2 410 0.210  PV134930
1×120.0 14.1 20.2 480 0.164 PV169130
Packing & Delivery
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel


Package: Generally, pack in rolls or wooden drums. Accept customized service for free.
Rolls, Wooden Drums, Steel Drums, Reels



Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.


Our Factory
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel
00:0
Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.
Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Certifications
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel
TUV Approval Red Black Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Power Cable Wire for Solar Panel
FAQ
1.Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.
2.Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
3.When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
4.Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.
5.If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
6.When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
7.After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
