Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical Electric Wire

Shop our Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical Electric Wire. We are a factory with high-quality products at competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Electrical Wire
Material Shape
Round and Flat
Range of Application
LSOH
Certification
ISO9001, CCC, BV, SGS
Brand
Stranded, Solid
Color
as Per Customer′s Requirement
Delivery
15-20days After Payment
Rated Voltage
600V
Sample
Free
OEM
Yes
Transport Package
as Per Customer′s Requirement
Specification
0.5-500mm2
Trademark
as request
Origin
Henan, China
HS Code
8544492100
Production Capacity
500km/Month

Product Description

 Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical       Electric Wire
Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical Electric Wire
Conductor:
Copper/Aluminum/Copper clad aluminum
Insulation:
PVC/PE/HDPE/XLPE
Apply voltage:
300/300V   300/500V   450/750V
Ambient Temperature:
Above 0°C
Operation temperature:
 For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
 Type 08 will allow 105°C.

Type & Name:

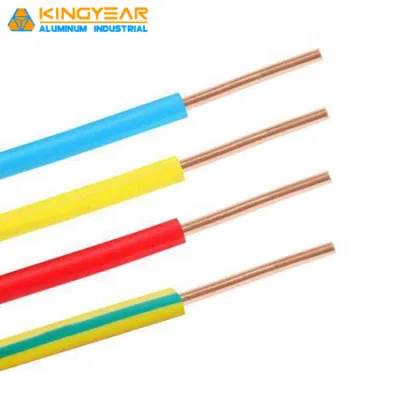

 BV         copper core PVC insulated power wire
 BVR      copper core PVC insulated flexible  power wire
 BLV       aluminum core PVC insulated power wire
 BVVB    copper core PVC insulated PVC sheathed parallel power wire
 BLVVB   aluminum core PVC insulated , PVC sheathed wire
 RVS        copper core PVC insulated twisted fexible wire
 RVVB     copper core PVC insulated sheath flat flexible wire

Category

Descriptions

Type

Rated voltage

No. of cores

Nominal Cross .section mm2.

Non-sheathed cables and wires for fixed wiring

Single core solid conductor non-sheathed cables for common uses

60227IEC01

(BV)

450/750

1

1.5~400

Aluminum conductor PVC insulated cables

BLV

450/750

1

2.5~400

Copper conductor PVC insulated flexible cables

BVR

450/750

1

2.5~70

Copper conductor PVC insulated wires

BV

300/500

1

0.75~1.0

Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C

60227IEC05

(BV)

300/500

1

0.5~1.0

Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C

60227IEC07

(BV-90)

300/500

1

0.5~2.5

Single core flexible conductor non-sheathed cables for common uses

60227IEC02

(RV)

450/750

1

1.5~240

Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C

60227IEC06

(RV)

300/500

1

0.5~1.0

Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C

60227IEC08

(RV-90)

300/500

1

0.5~2.5

Sheathed cables for fixed wiring

Light-duty PVC sheathed cables

60227IEC10(BVV)

300/500

1,2,3,

4,5

1.5~35

Copper conductor PVC insulated PVC sheathed flat cables

BVVB

300/500

2,3

0.75~10

Aluminum conductor PVC insulated PVC sheathed circular cables

BLVV

300/500

1

2.5~10

Aluminum conductor PVC insulated PVC sheathed flat cables

BLVVB

300/500

2,3

2.5~10

Flexible cables(cords)

Non-sheathed flat cords

60227IEC42(RVB)

300/300

2

0.5~0.75

Cords for indoor illumination loops

60227IEC43

(SVR)

300/300

1

0.5~0.75

Light-duty PVC sheathed cords

60227IEC52(RVV)

300/300

2,3

0.5~0.75

Ordinary PVC sheathed cords

60227IEC53(RVV)

300/500

2,3,4,5

0.75~2.5

Copper conductor PVC insulated stranded cords for connecting

RVS

300/300

2

0.5~0.75

Technical Parameters:

Nominal Section(mm2) Number /diameter of core   (mm) Thickness of insulation(mm) outer diameter     (mm) BV weight (kg/km) BLV weight (kg/km) Thickness of sheath(mm)
1.5 1/1.38 0.70 2.78 20.07 / 0.80
2.5 1/1.78 0.80 3.38 31.72 16.32 0.80
4 1/2.25 0.80 3.85 46.70 22.09 0.90
6 1/2.76 0.80 4.36 66.43 29.39 0.90
10 7/1.35 1.00 6.05 113.15 50.71 0.90
16 7/1.70 1.00 7.10 170.56 71.55 0.90
25 7/2.14 1.20 8.82 267.85 110.96 1.20
35 7/2.52 1.20 9.96 361.34 143.78 1.20
50 19/1.78 1.40 11.70 490.78 195.74 1.40
70 19/2.14 1.40 13.50 691.22 264.77 1.40
95 19/2.52 1.60 15.80 954.92 363.58 1.60
120 37/2.03 1.60 17.41 1191.27 443.70 1.60
150 37/2.25 1.80 19.35 1465.85 547.47 1.80
185 37/2.52 2.00 21.64 1837.14 685.12 2.00
240 61/2.24 2.20 24.56 2384.59 883.48 2.20
300 61/2.50 2.40 27.30 2963.24 1093.44 2.40

Electric Wire Production Progress

Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical Electric Wire

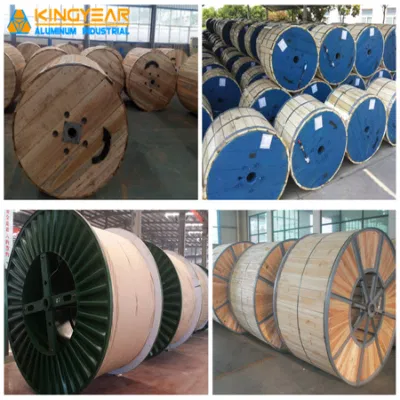

Electric Wire Package

Wholesale Low Voltage BV/BVV Copper Conductor PVC Insulation Sheath Electrical Electric Wire
About Us
Henan Kingyear Aluminum Industrial Co., Ltd was founded in 2006, located in Gongyi industry area of Henan Province. Our company consists of 3 main subsidiaries, business specialized in develop, manufacture and distribution of Aluminum products. Our factories zone occupies more than 1200,000 square meters and the employees' number has exceeded 200.
We, Kingyear, dedicate ourselves to be a manufacturer of providing comprehensive solutions and customized services to help our customer to solve their problems and improve their profit.
We have a professional sales team with each of them has engaged in this job for 10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!


Our Service:
1.10 years production experience and 10 years export experience .
2.Products certification :ISO,SGS,CE,BV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

FAQ
Q:I didn't find the product which I need in this page?
A:If you didn't find the species of the produxts you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 5 tons.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the product which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include size, color, material, processing requirement etc.
