Basic Info.
Model NO.
UL1213
Conductor Material
Copper
Sheath Material
PTFE
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, CCC, RoHS, VDE
Packaging
1000FT/Spool
Weight
About 1kg/1000FT
Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
15-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Warranty Time
at Least 10 Years for Proper Use
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300,000kms
Transport Package

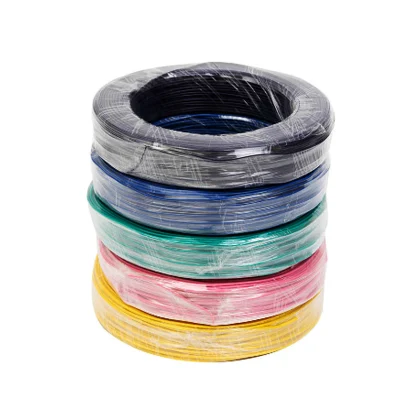

Reel, Spool, Pallet
Specification
Customize
Trademark
BORT
Origin
China
HS Code
8544492900
Production Capacity
300000km/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description
DESCRIPTION:
★Rated temperature:105ºC
★Rated voltage:600V
★According to:UL Subject758,UL1581,C22.2

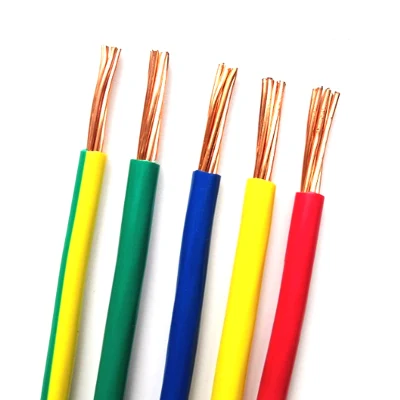

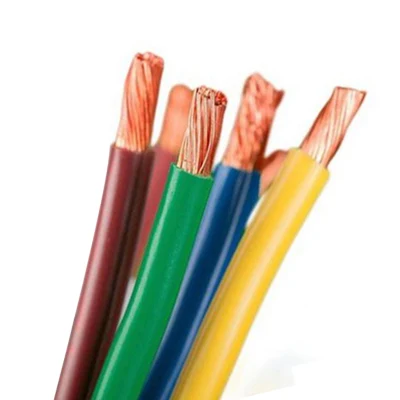

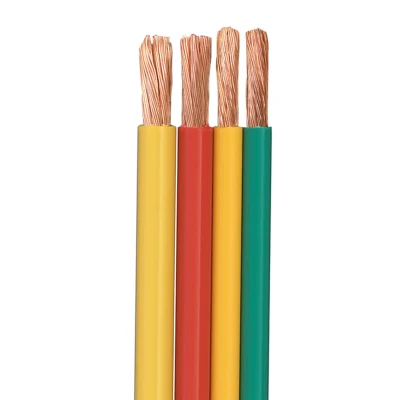

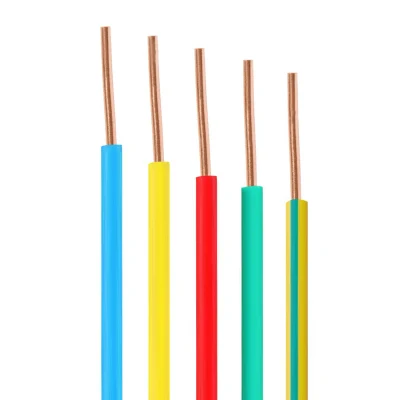

★Solid or stranded,tinned or bare copper conductor
★PTFE Insulation
★Passes UL VW-1&FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For general purpose internal wiring of appliance
| AWG | NO.of Cond (mm) | Conductor resistance 20ºC (Ω/KM) | Conductor Dia (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | ||
| Nom. | Min. | Nom | Tolerance | ||||
| 12 | 37/0.374 | 5.64 | 2.62 | 0.25 | 0.18 | 3.12 | ±0.15 |
| 14 | 19/0.361 | 8.96 | 1.85 | 0.25 | 0.18 | 2.35 | ±0.15 |
| 16 | 19/0.287 | 14.6 | 1.45 | 0.25 | 0.18 | 1.95 | ±0.10 |
| 18 | 1/1.02 | 23.2 | 1.02 | 0.25 | 0.18 | 1.52 | ±0.10 |
| 18 | 19/0.235 | 23.2 | 1.18 | 0.25 | 0.18 | 1.68 | ±0.10 |
| 20 | 19/0.19 | 36.7 | 0.95 | 0.25 | 0.18 | 1.45 | ±0.10 |
| 20 | 7/0.32 | 36.7 | 0.98 | 0.25 | 0.18 | 1.48 | ±0.10 |
| 22 | 19/0.15 | 59.4 | 0.76 | 0.25 | 0.18 | 1.26 | ±0.10 |
| 22 | 7/0.254 | 59.4 | 0.76 | 0.25 | 0.18 | 1.26 | ±0.10 |
| 22 | 1/0.65 | 59.4 | 0.65 | 0.25 | 0.18 | 1.15 | ±0.10 |
| 24 | 19/0.12 | 94.2 | 0.61 | 0.25 | 0.18 | 1.10 | ±0.10 |
| 26 | 7/0.16 | 150 | 0.49 | 0.25 | 0.18 | 0.99 | ±0.10 |
| 28 | 7/0.127 | 239 | 0.39 | 0.25 | 0.18 | 0.89 | ±0.10 |
| 30 | 1/0.254 | 361 | 0.25 | 0.25 | 0.18 | 0.75 | ±0.10 |
